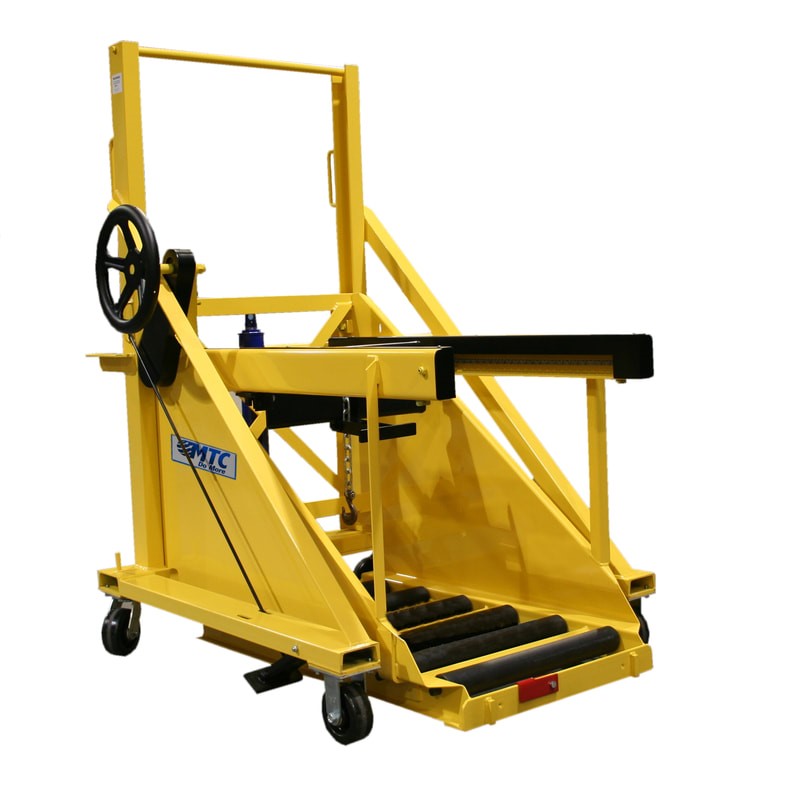

Overview
| Features | Benefits |
|---|---|

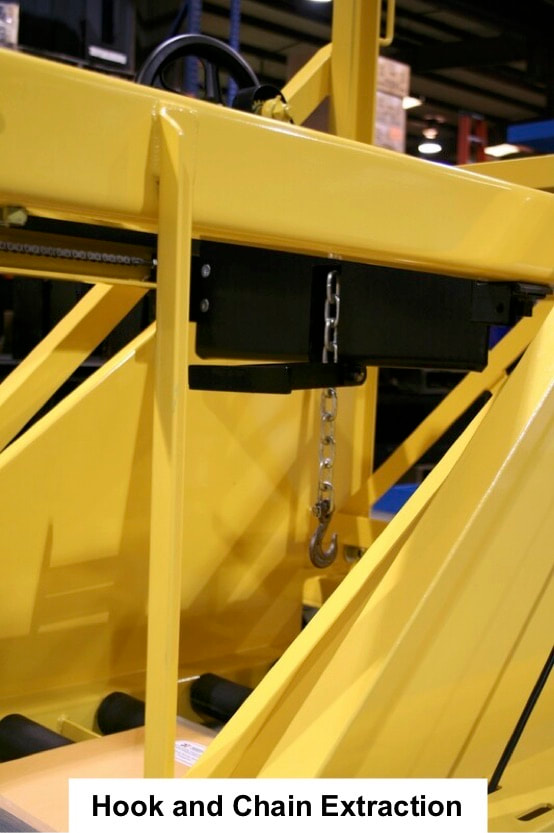

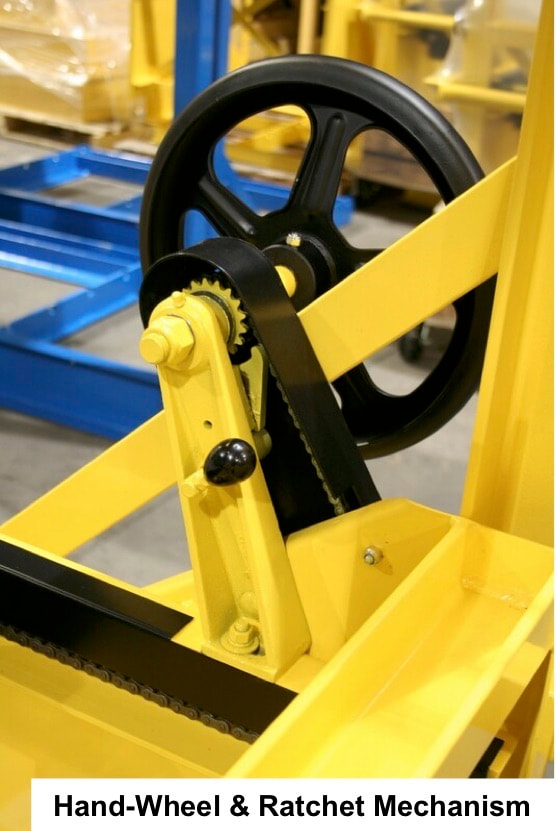

| Utilizes gears, chains, and a hand-wheel to move batteries in and out of the compartment. | Does not require a fork truck. |
| Ratchet transfer system. | Reduces the amount of force required to move the battery on and off the carriage rollers. |

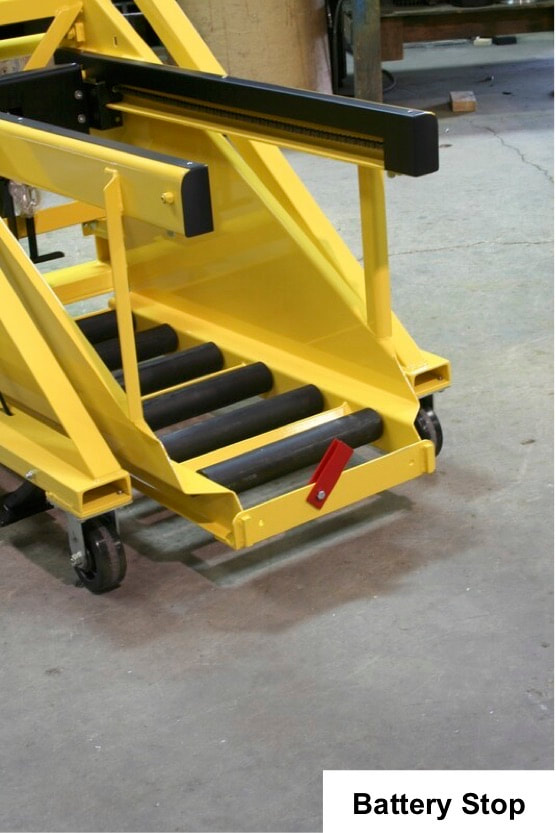

| Mechanical battery safety stop. | Protects the operator and surrounding personnel form possible injury during battery transport. |

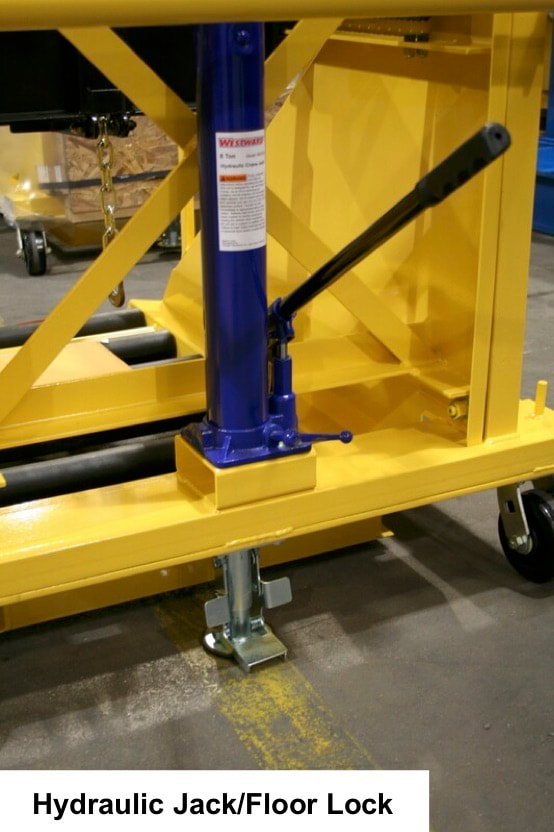

| Floor lock. | Stabilizes the BT when a battery is being loaded or unloaded. |
Options include:

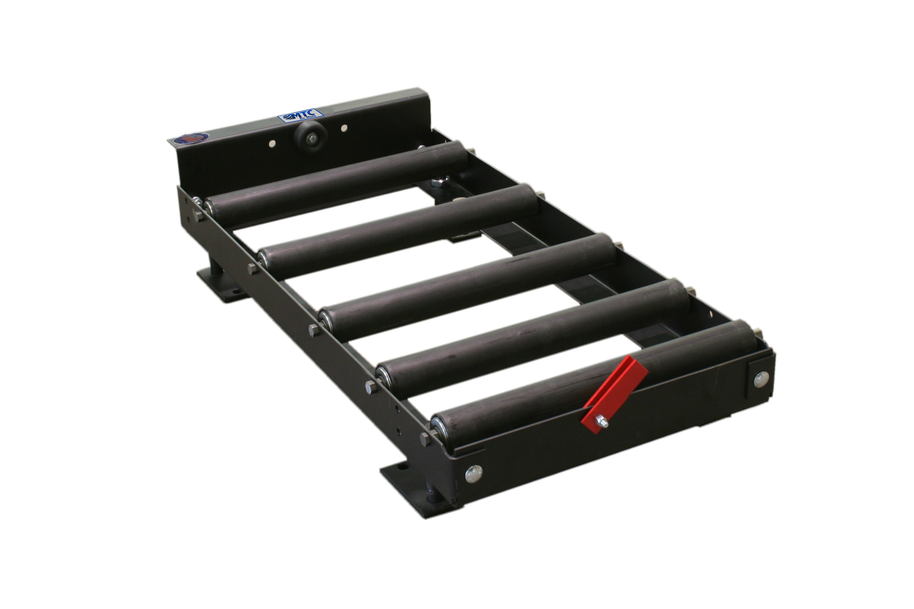

- Extension Kit (-KT)
- Low profile (-LP)

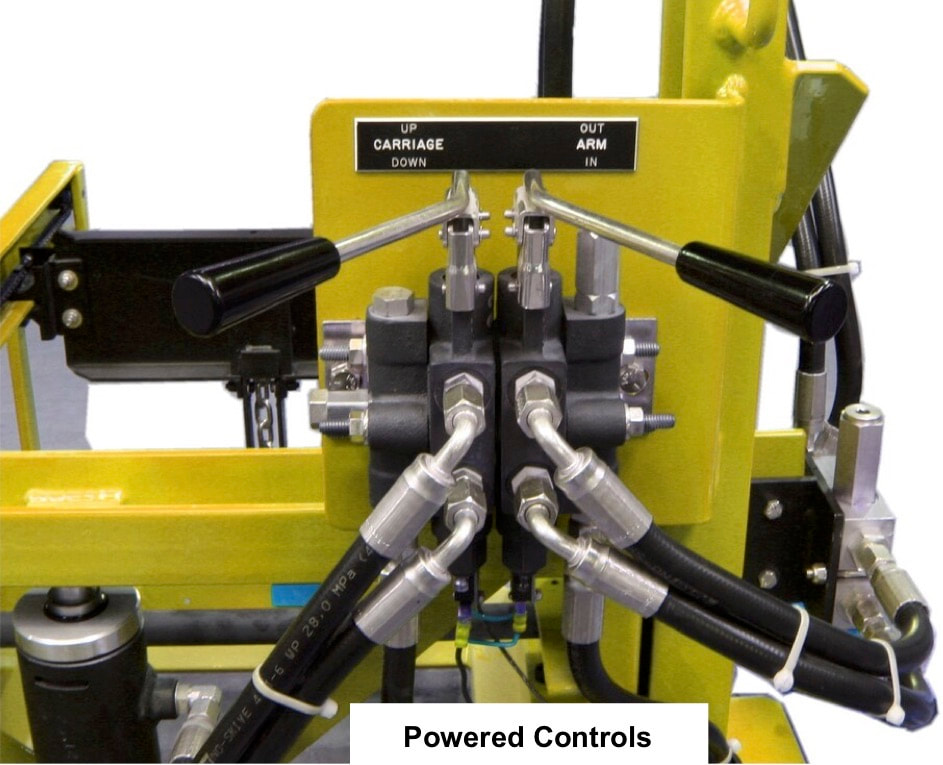

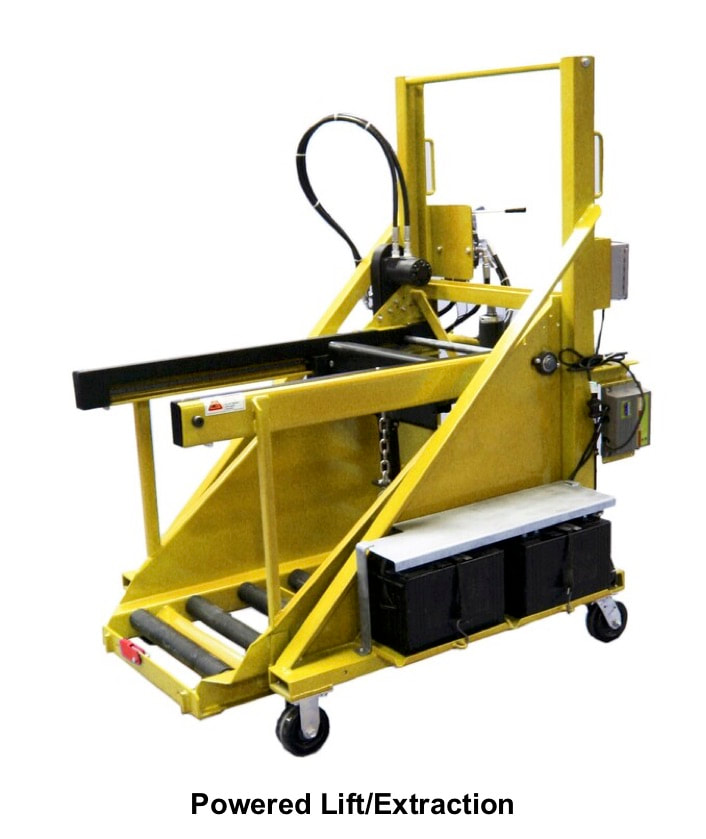

- Powered lift, extend, retract (-DC)
Specifications

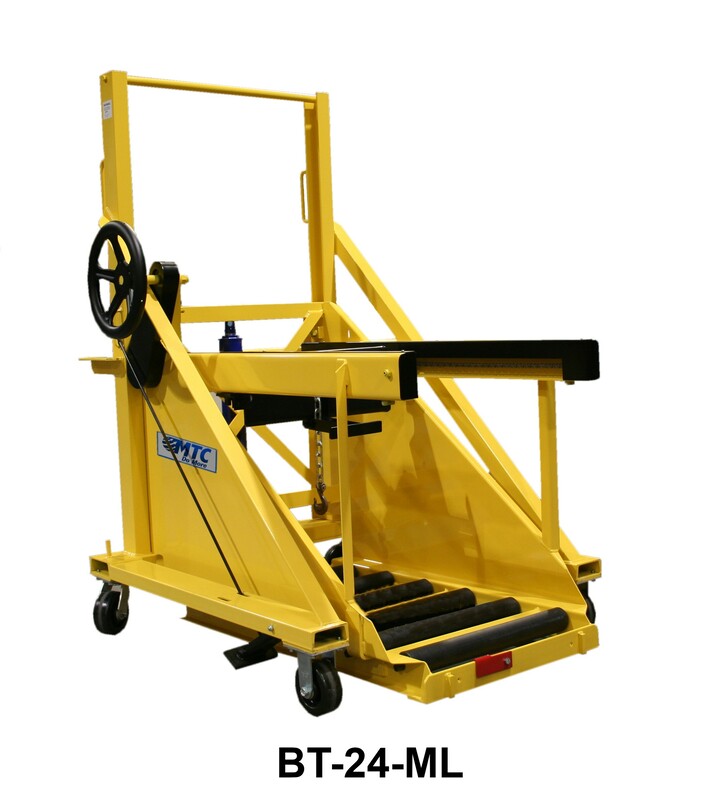

| Model | BT-16 | BT-24 | BT-30 |
|---|---|---|---|
| Max Load Capacity | 2000lb/907kg | 3000lb/1365kg | 3000lb/1365kg |
| Battery Compartment Width | 15.75in/40cm | 21.75in/55.2cm | 31in/78.7cm |
| Battery Compartment Depth | 41.5in/105.4cm | 41.5in/105.4cm | 41.5in/105.4cm |
| Max Recommended Battery Width | 15in/38cm | 21in/53cm | 30in/76cm |
| Max Recommended Battery Length | 32.5in/82.6cm | 32.5in/82.6cm | 32.5in/82.6cm |
| Roller Height | 5.37in/13.6cm-23in/58.4cm | 5.37in/13.6cm-23in/58.4cm | 5.37in/13.6cm-23in/58.4cm |
| Overall Width | 33.75in/85.7cm | 40.25in/102.2cm | 49.0in/124.5cm |
| Overall Height | 54.25in/137.8cm | 62.25in/158.1cm | 64in/162.5cm |
| Overall Length | 56.25in/140.6cm | 54in/137.2cm | 53.25in/135.3cm |
