Battery Wash Cabinets

MTC WCA Series

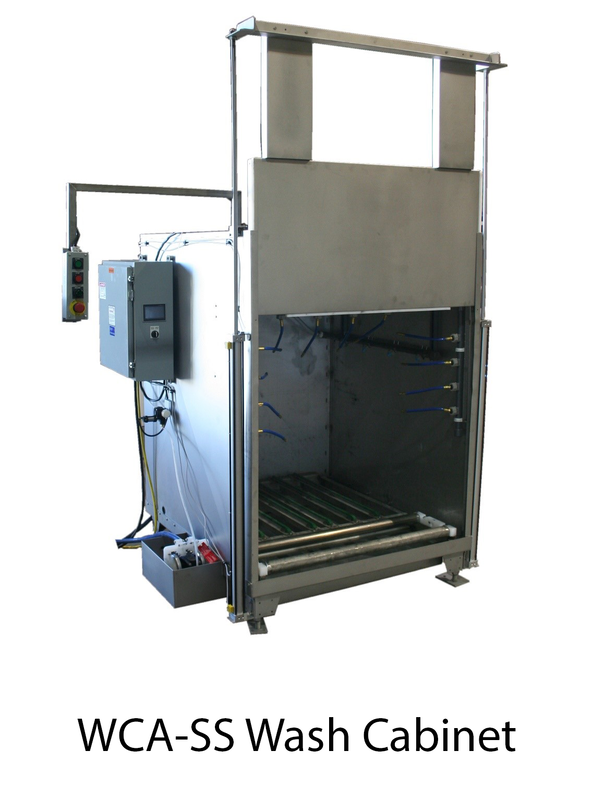

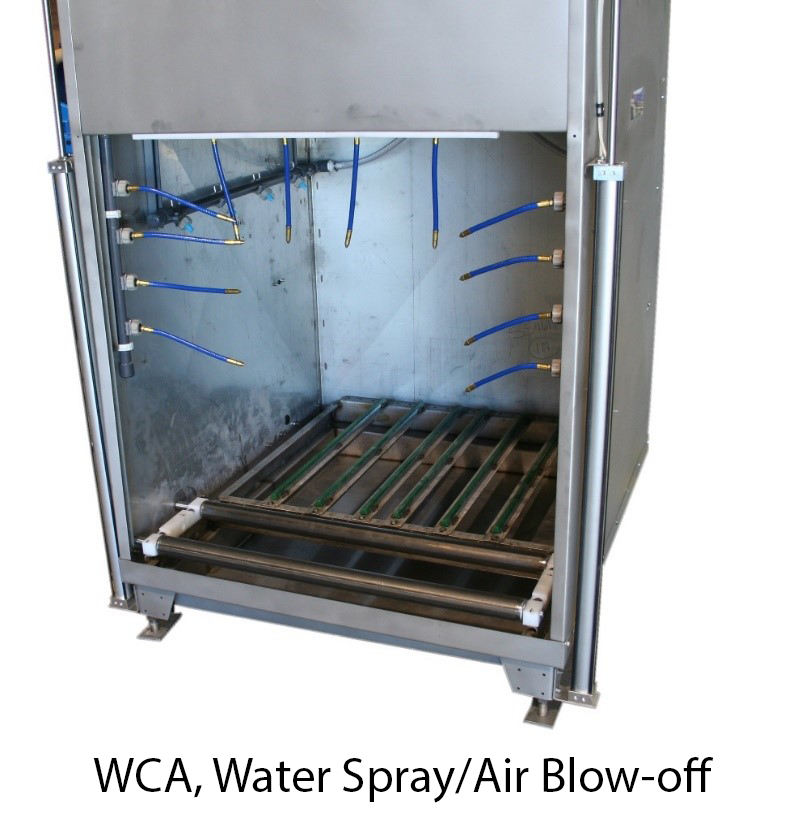

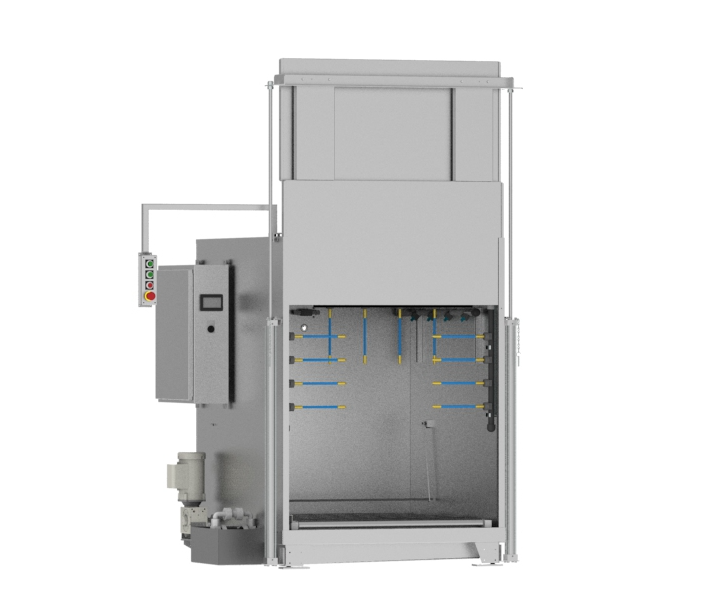

MTC’s WCA Wash Cabinet is an easy to use and highly dependable tool for rinsing and drying fork truck batteries. The WCA-SS uses a touchscreen to provide for simple operation. The touchscreen allows the user to control settings such as wash time, blow off time, dry time, and sump pump time to suit wash operations to a particular facility’s needs.

FeaturesBenefits

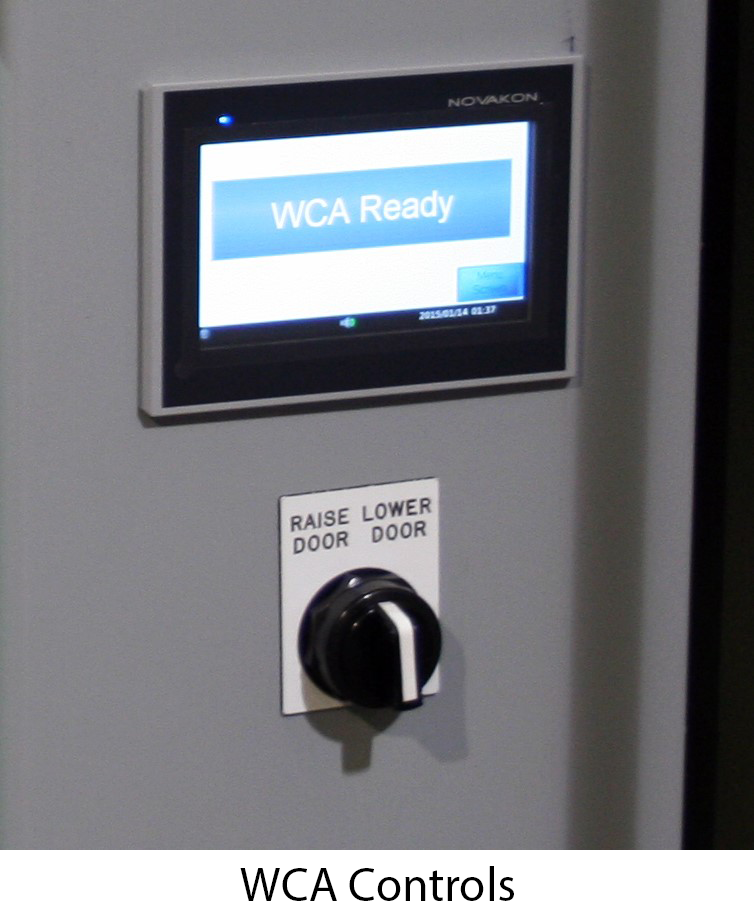

WCA is controlled by a PLC with an HMI Interface. Convenient & simple to use.
Construction is formed panel and channel stainless-steel.Assures long life and ease of sanitation.

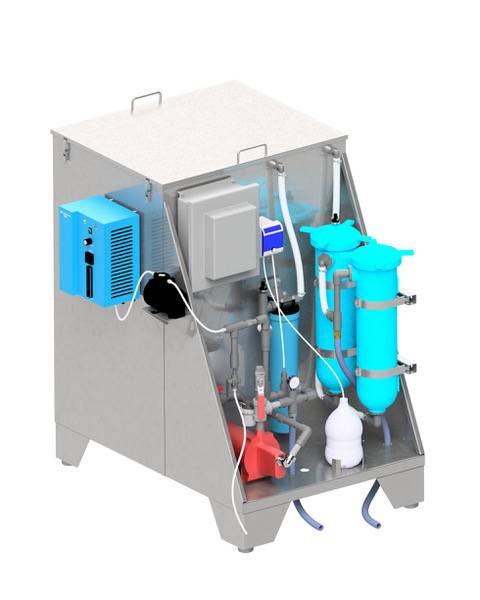

The WCA Wash Cabinet can be combined with the MWTS Water Treatment System to form a closed loop recirculation system. Reduces environmental impact by recycling battery wash water.

Specifications

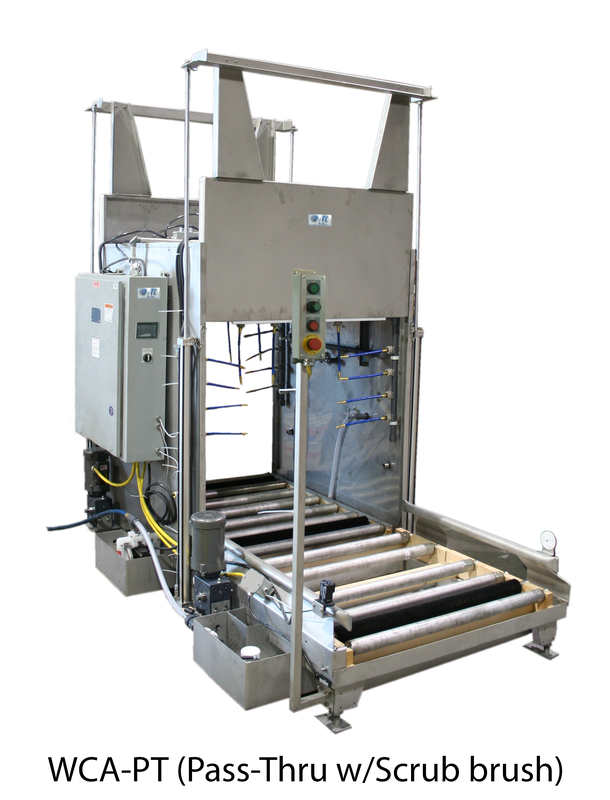

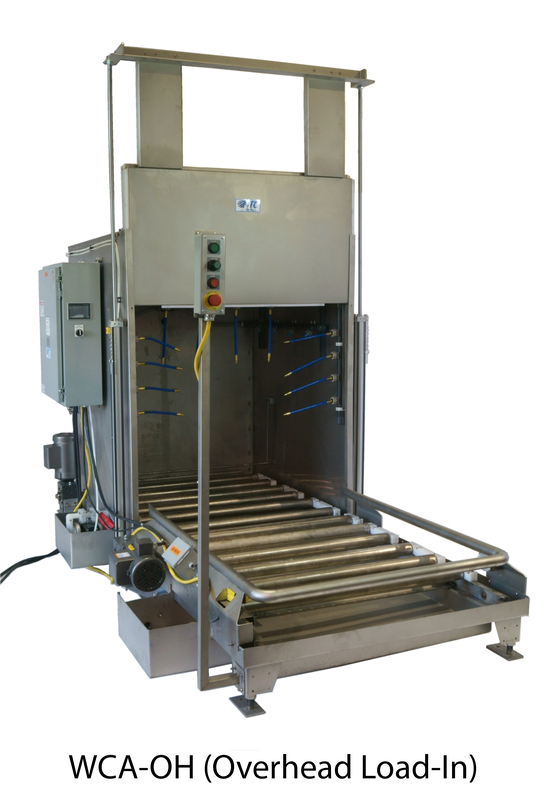

ModelWCA-SSWCA-SS-PRWCA-OH-SSWCA-1C-SS
Frame ConstructionStainless SteelStainless SteelStainless SteelStainless Steel
Water Supply/Min Flow RateMunicipal Water Supply, 30PSI (207 kPa)/11 GPM (42 LPM)Municipal Water Supply, 30PSI (207 kPa)/11 GPM (42 LPM)Municipal Water Supply, 30PSI (207 kPa)/11 GPM (42 LPM)Municipal Water Supply, 30PSI (207 kPa)/11 GPM (42 LPM)
Pneumatic Sump Pump IncludedYes,
13 GPM (50 LPM)
Yes,
13 GPM (50 LPM)
Yes,
13 GPM (50 LPM)
Yes,
13 GPM (50 LPM)
Drain Base Capacity32 gal (121 L)32 gal (121 L)32 gal (121 L)32 gal (121 L)
​Conveyor Drain Base CapacityN/AN/A32 gal (121 L)32 gal (121 L)
Input Voltage Required120 VAC Standard120 VAC Standard120 VAC Standard120 VAC Standard
System AMP Draw2 Amps12 Amps22 Amps22 Amps
Wash Cycle Length1-150 Seconds1-150 Seconds1-150 Seconds1-150 Seconds
​Overall Length
​(Without Plumbing)
​63”
(1,600 mm)
​63”
(1,600 mm)
120”
(3,048 mm)
120”
(3,048 mm)
​Overall Width
​(Less Pendant)
​64”
(1,626 mm)
​64”
(1,626 mm)
​64”
(1,626 mm)
​64”
(1,626 mm)
Overall Width
​(With Pendant)
​85”
(2,159 mm)
​85”
(2,159 mm)
N/AN/A
Overall Height
​(Door Lowered)
71 - 74”
​(1,804 mm – 1,905 mm)
71 - 74”
​(1,804 mm – 1,905 mm)
71 - 74”
​(1,804 mm – 1,905 mm)
71 - 74”
​(1,804 mm – 1,905 mm)
​Overall Height
​(Door Lowered)
106 - 110”
​(2,693 mm – 2,794 mm)
106 - 110”
​(2,693 mm – 2,794 mm)
106 - 110”
​(2,693 mm – 2,794 mm)
106 - 110”
​(2,693 mm – 2,794 mm)
Roller Height
​(Floor to top of rollers)
11 - 15”
​(280 mm – 381 mm)
11 - 15”
​(280 mm – 381 mm)
11 - 15”
​(280 mm – 381 mm)
11 - 15”
​(280 mm – 381 mm)
Max. Battery Length​49”
(1,245 mm)
​49”
(1,245 mm)
​49”
(1,245 mm)
​49”
(1,245 mm)
​Max. Battery Width​40”
(1,016 mm)
​40”
(1,016 mm)
​40”
(1,016 mm)
​40”
(1,016 mm)
Max. Battery Height42”
(1,067 mm)
42”
(1,067 mm)
42”
(1,067 mm)
42”
(1,067 mm)
Min. Battery Length​20”
(508 mm)
​20”
(508 mm)
​20”
(508 mm)
​20”
(508 mm)
Min. Battery Width6”
(153 mm)
6”
(153 mm)
6”
(153 mm)
6”
(153 mm)
Min. Battery Height​19”
(483 mm)
​19”
(483 mm)
​19”
(483 mm)
​19”
(483 mm)
Max Weight Capacity​5,000 lbs.
(2,268 kg)
​5,000 lbs.
(2,268 kg)
​5,000 lbs.
(2,268 kg)
​5,000 lbs.
(2,268 kg)

Related Products

Battery Wash Racks

Learn More

MWTS Series

Learn More

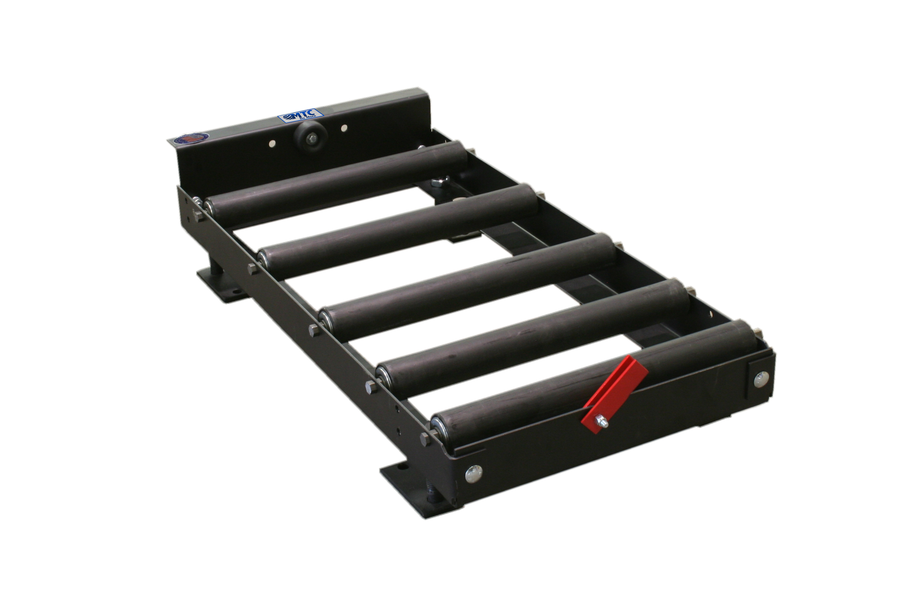

Battery Roller Stands
