Battery Wash Racks

MTC WR Series

Available Options:

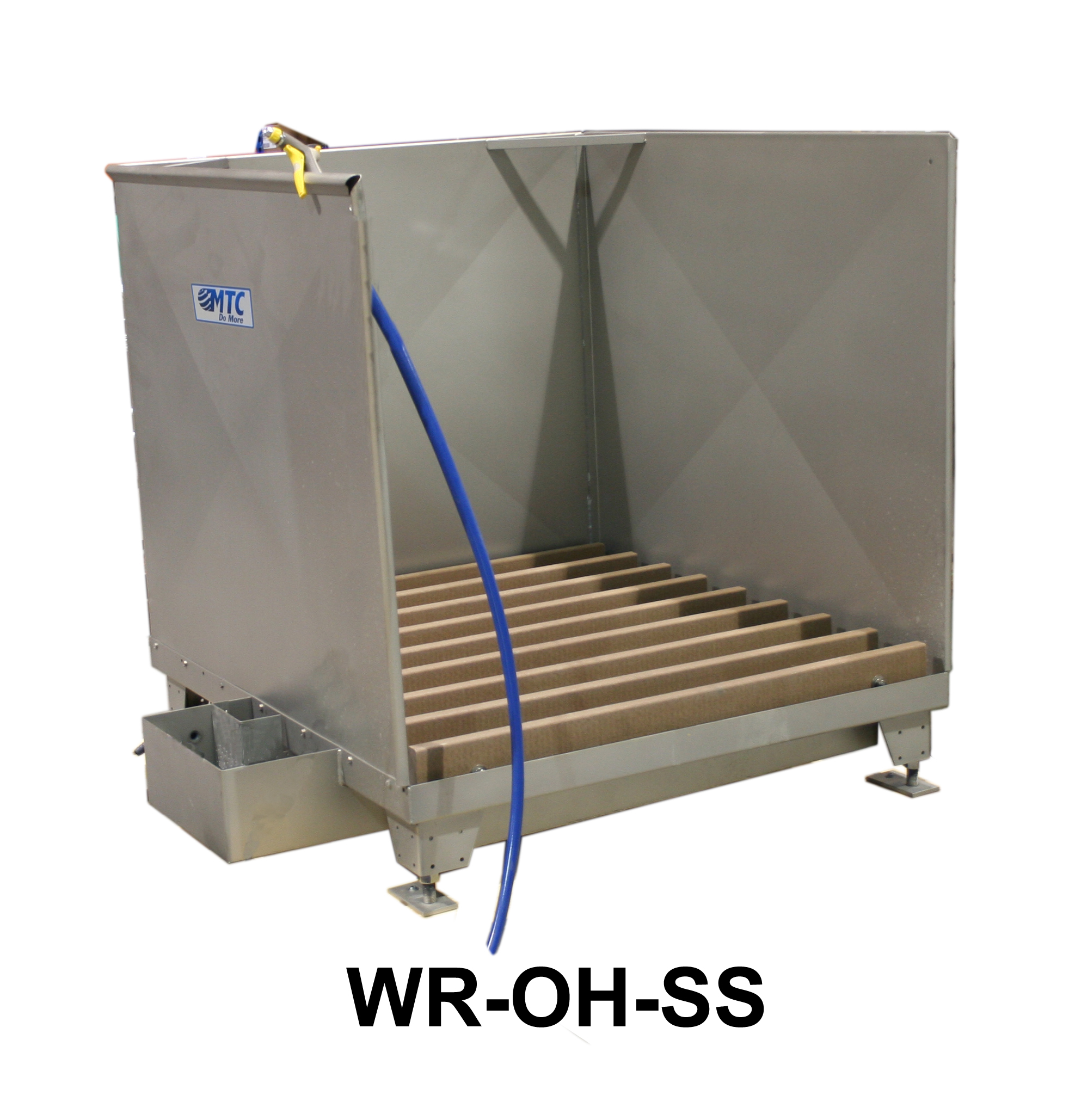

  • Overhead Load-In (-OH)

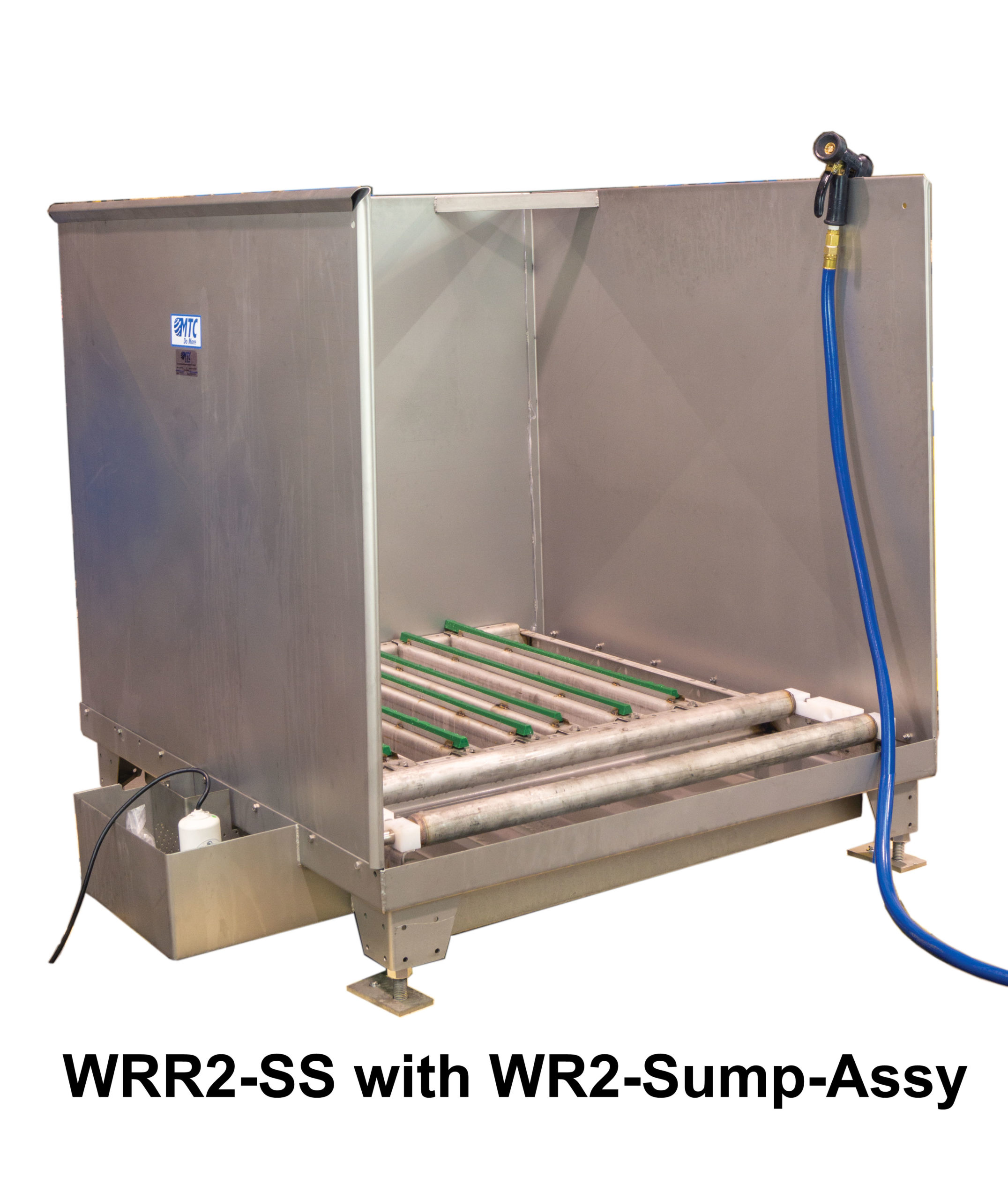

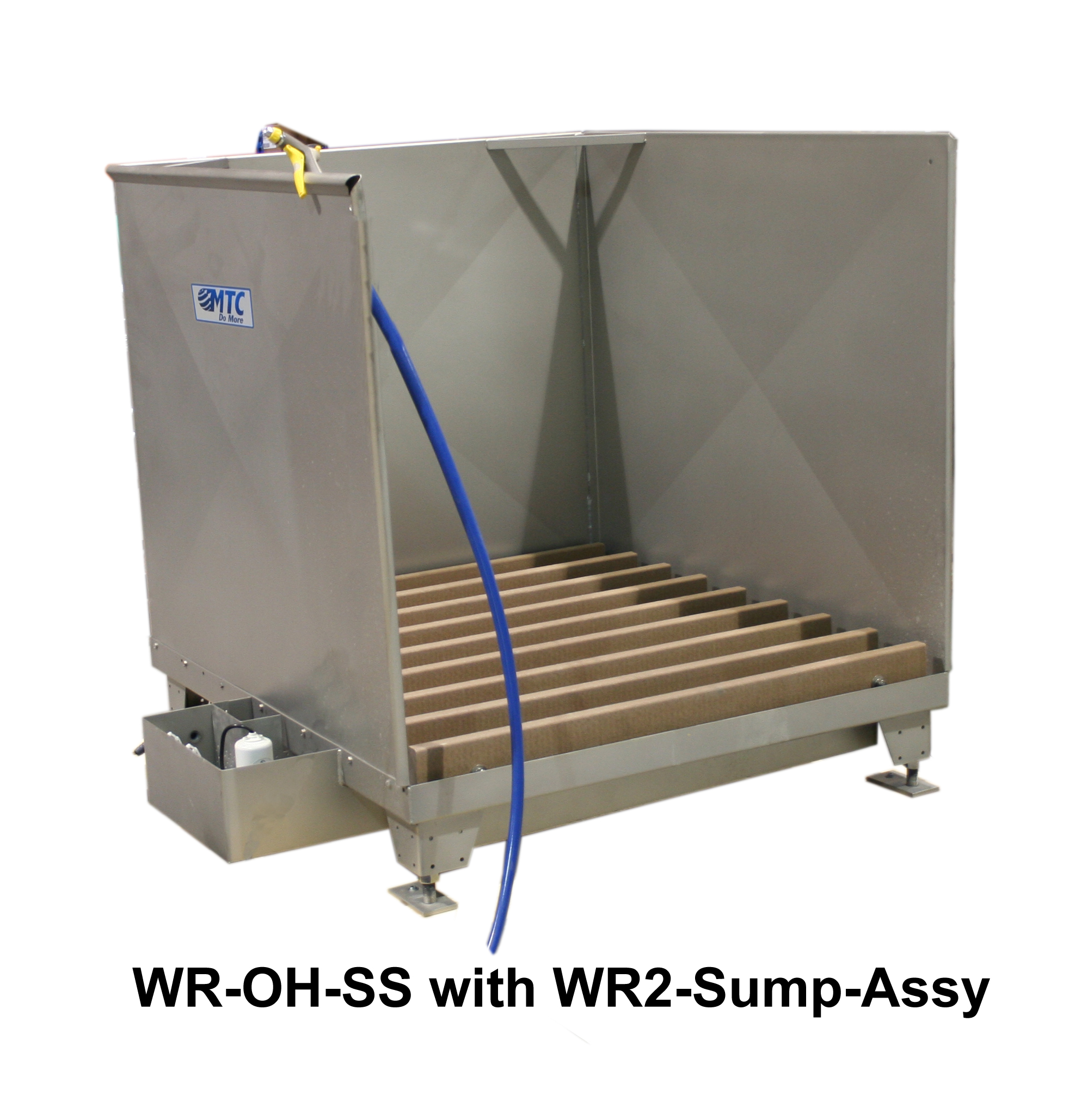

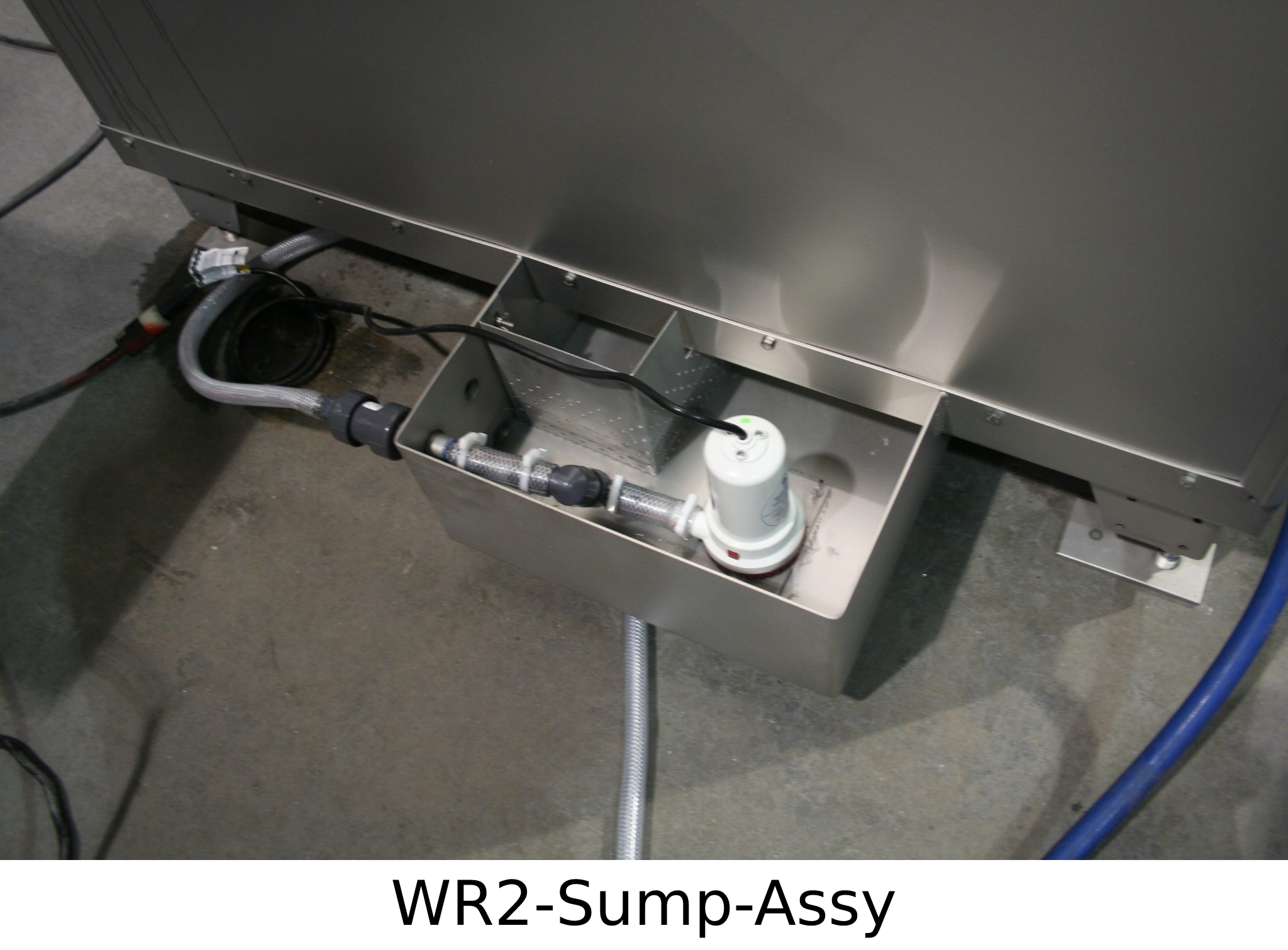

  • Sump Assembly (WR2-SUMP-ASSY)
  • Portable Base (-P)
  • Special Height (SH)
FeaturesBenefits
Construction is formed panel and channel stainless-steel.Acid Resistant; assures long life and ease of sanitation.

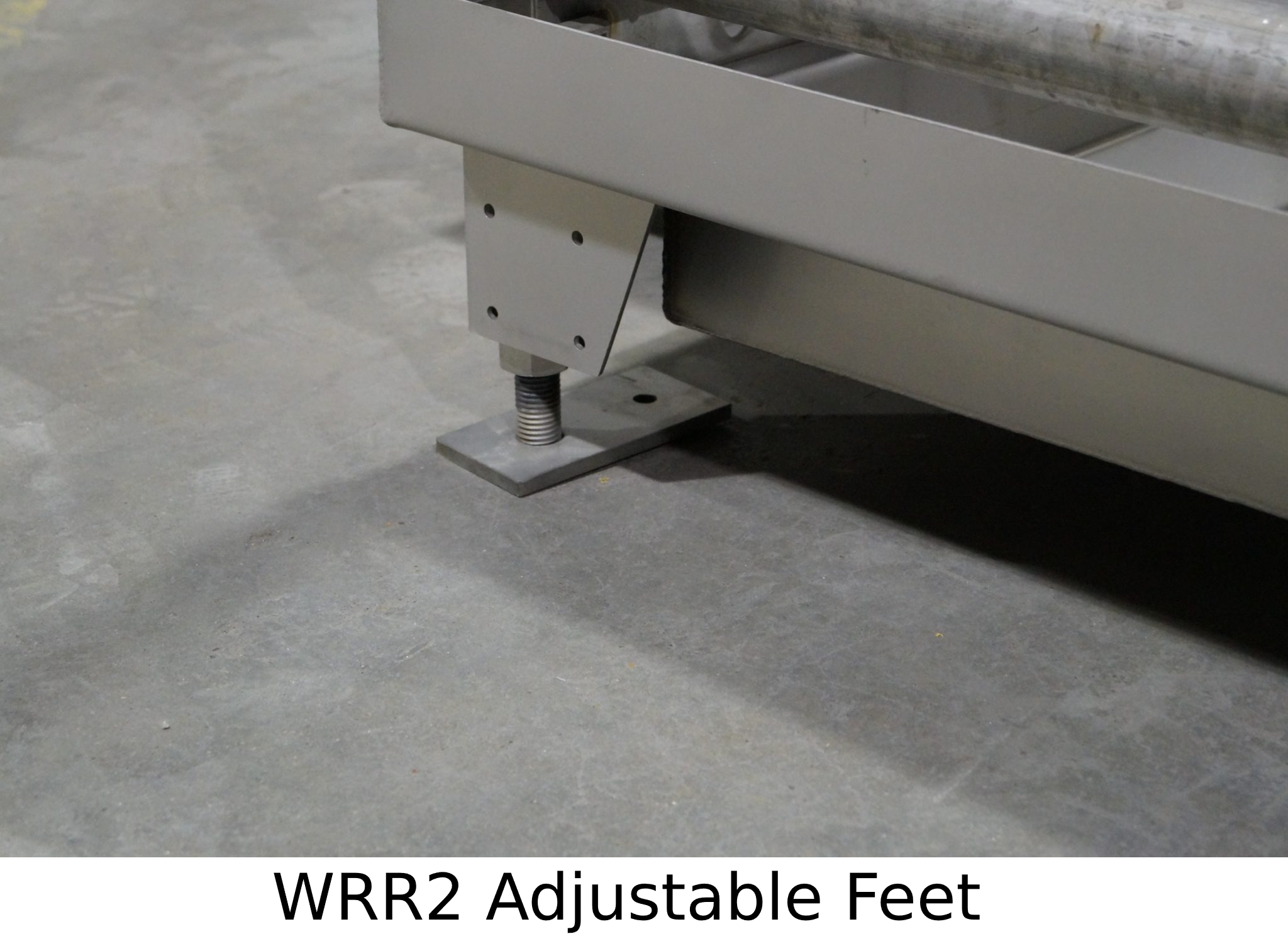

Adjustable FeetAccommodates various Load-in heights and unlevel floors
The WRR Wash Rack can be combined with the MWTS Water Treatment System to form a closed loop recirculation system.Reduces environmental impact by recycling battery wash water.

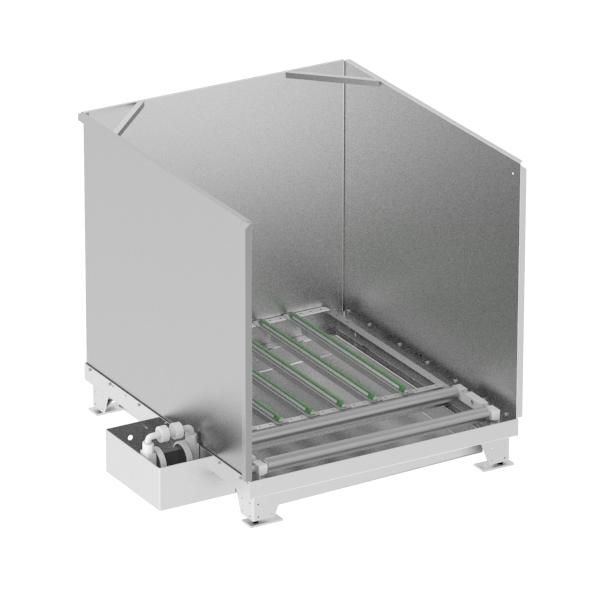

MTC’s WR Wash Rack is an easy to use and highly dependable tool for rinsing fork truck batteries.

Specifications

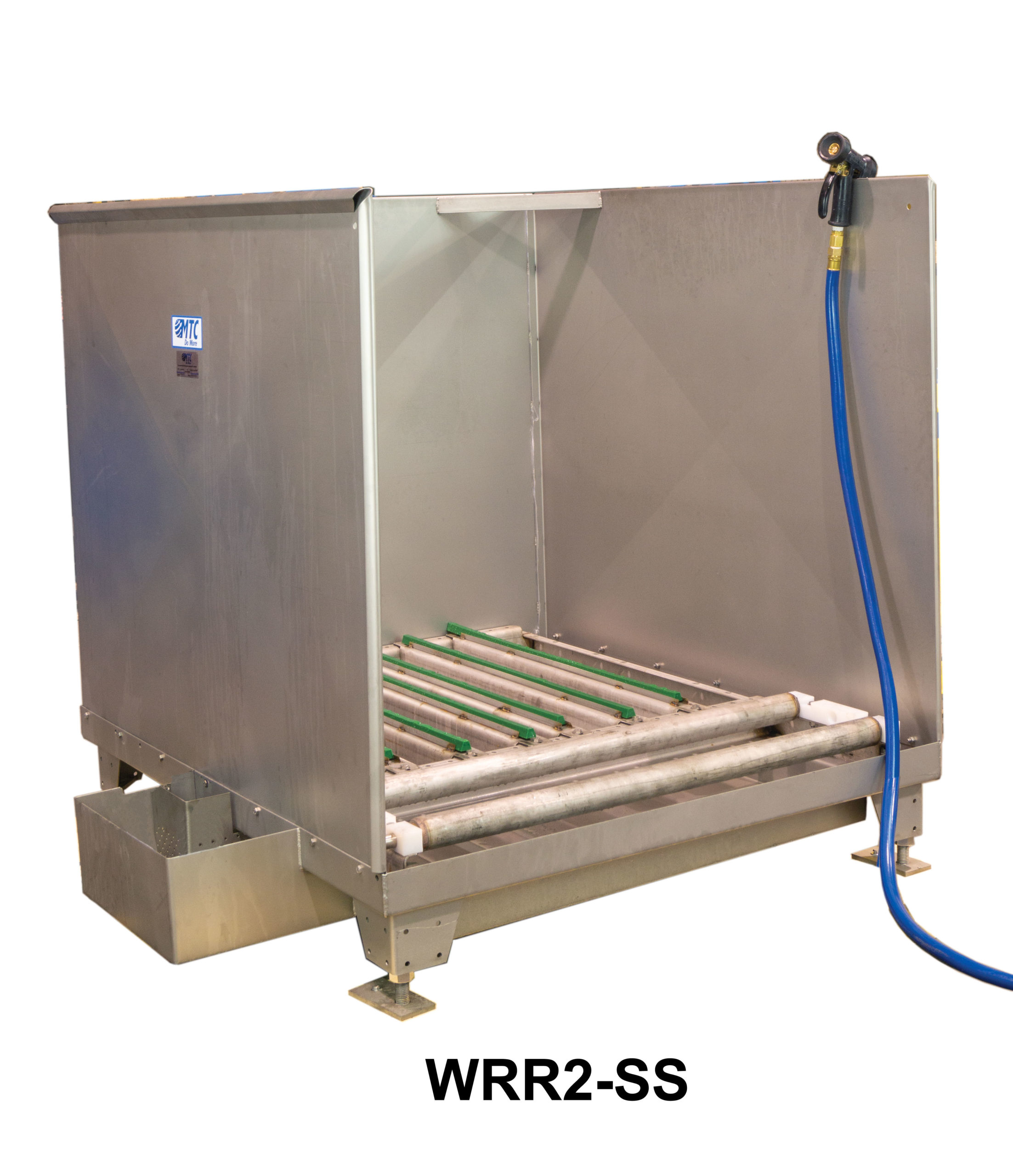

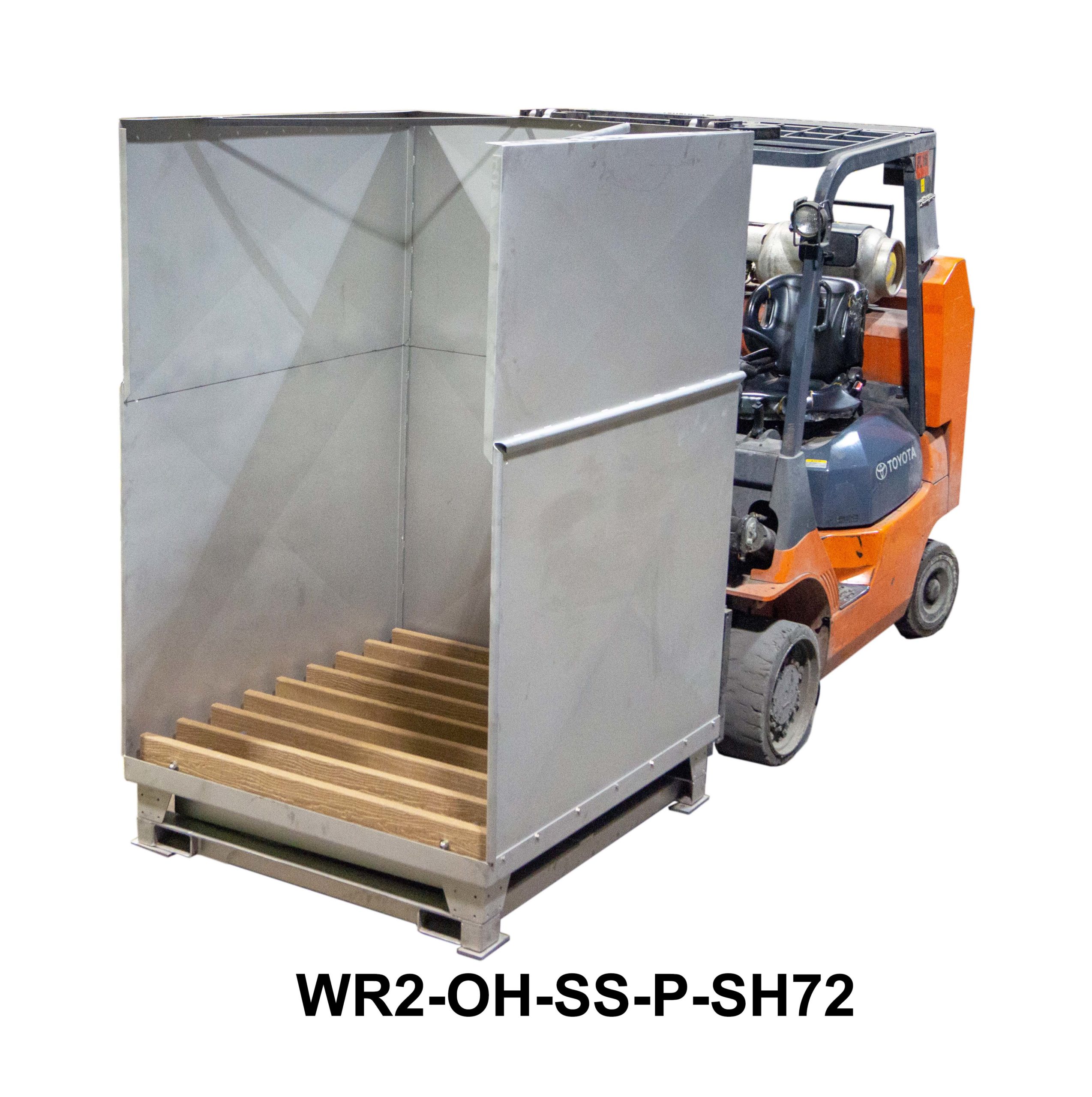

ModelWRR2-SSWR-OH-SSWR-OH-SS-P-SH72
Overall Width62”
(1575 mm)
62”
(1575 mm)
62”
(1575 mm)
Overall Depth57”
(1447 mm)
57”
(1447 mm)
57”
(1447 mm)
Overall Height​56”
(1422 mm)
​56”
(1422 mm)
88”
(2235 mm)
Height from floor to top of rollers10-13”
(254 mm – 330 mm)
10-13”
(254 mm – 330 mm)
14”
(356 mm)
Wash Deck Area49” x 55”
(1245 mm x 1397 mm)
49” x 55”
(1245 mm x 1397 mm)
49” x 55”
(1245 mm x 1397 mm)
Wash Deck MaterialSS Rollers & UHMW
​Slide Strips
EnvirowoodEnvirowood
Drain Tray Capacity32 gal
(122 L)
32 gal
(122 L)
32 gal
(122 L)
Max Weight Capacity5000 Lbs
(2268 Kg)
5000 Lbs
(2268 Kg)
5000 Lbs
(2268 Kg)
