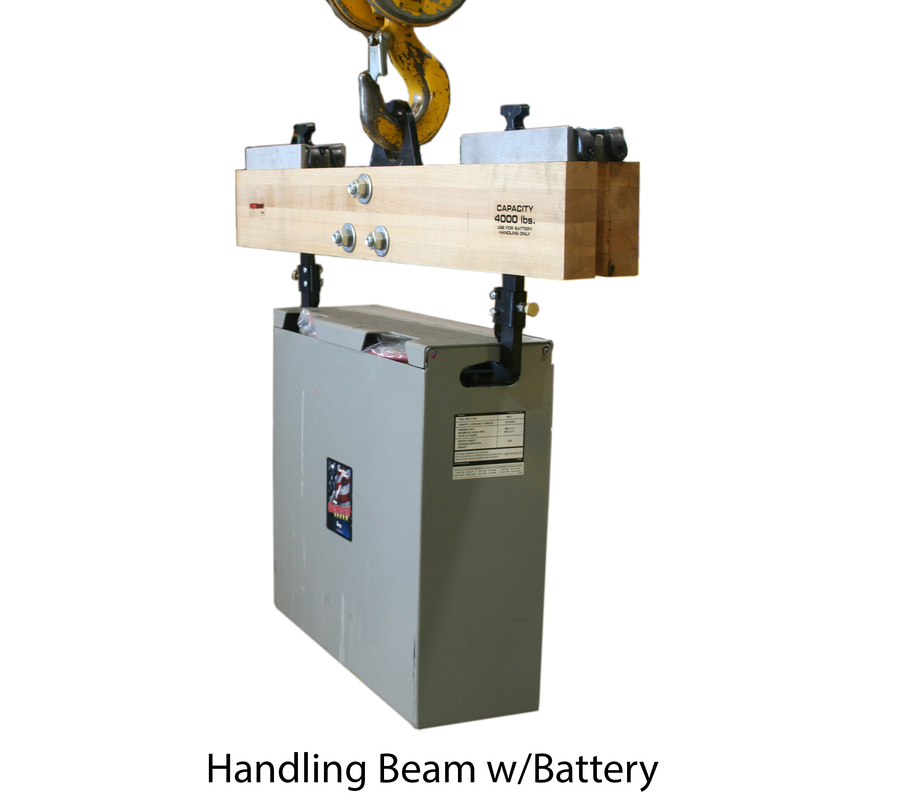

Battery Handling Beam

MTC HB Series

Battery Handling Equipment | Battery Accessories

Features	Benefits
Laminated maple construction w/ 5/8” Steel hooks	Ensures long life and non-conductive lifting method
Non-Slip Hook Design	Fits snugly into most battery lifting holes

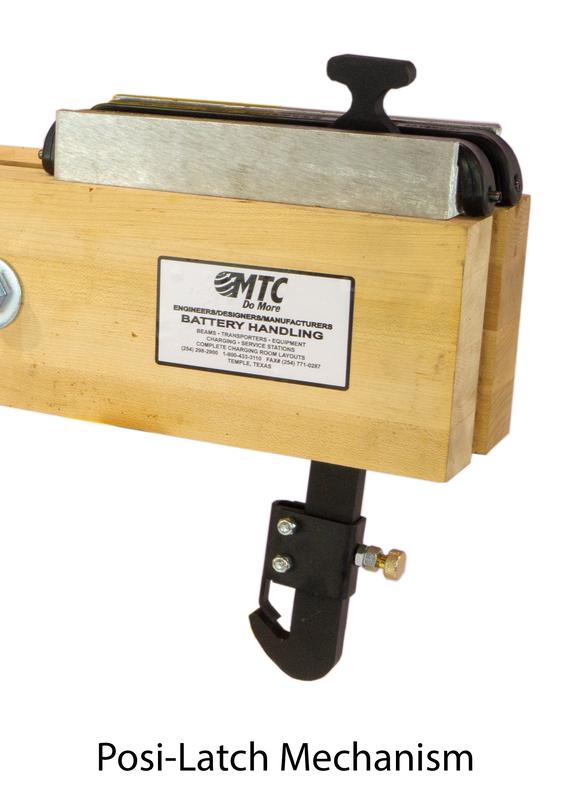

Equipped with MTC’s Posi-Latch Mechanism	Helps prevent batteries from slipping during removal
4000 lb./6000 lb. Capacity	Safely handles most forklift batteries on the market

Handling Beam Options include:

FA-6000 Fork Attachment

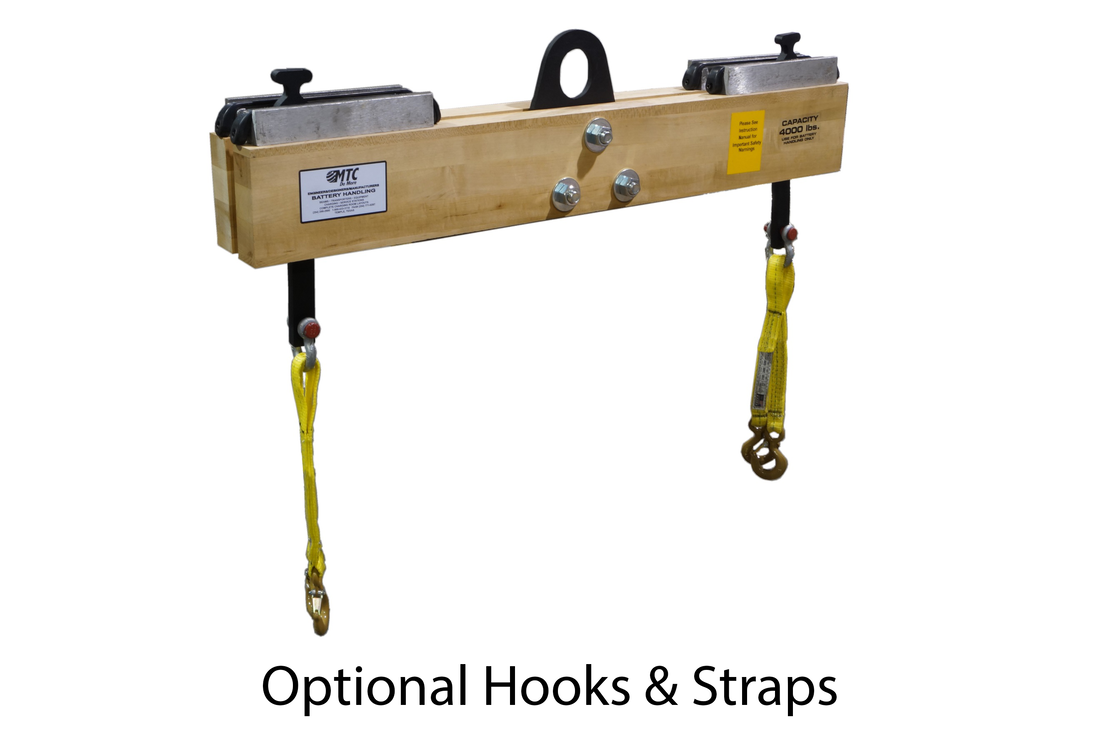

Various hook configurations

Specifications

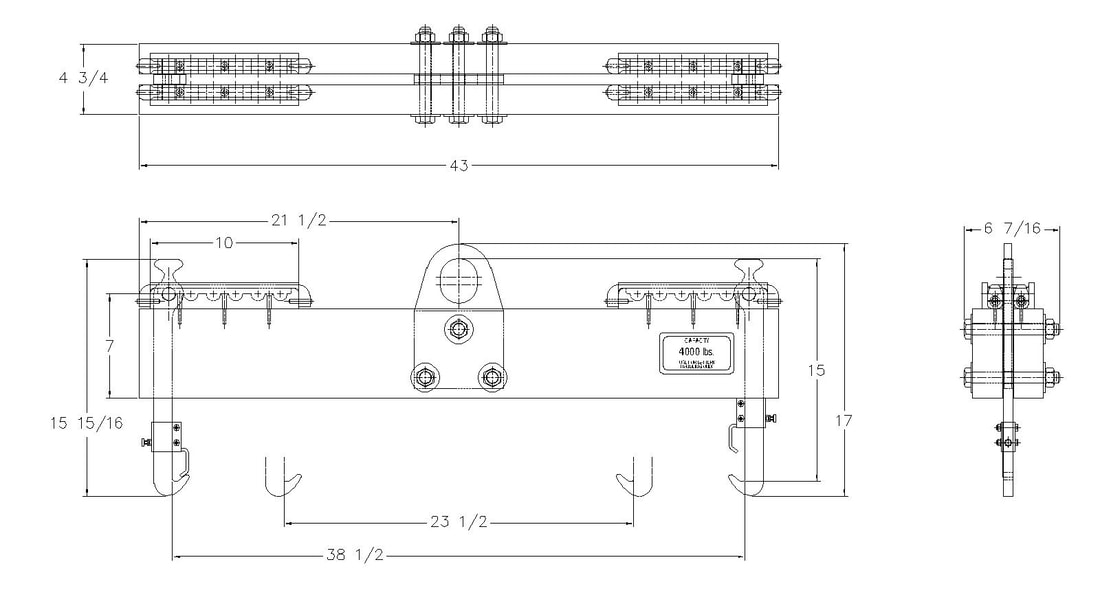

Model	Capacity	OL	Batteries	BH* Adjustable in 3” Increments
HB-4000-PL	4000 lbs./1814 kg	43”/109cm	21”/53 cm to 42”/107 cm long	24”/61cm to 39”/99 cm
HB-6000-PL	6000 lbs./2722 kg	47”/119 cm	25”/64 cm to 46”/117 cm long	28”/71 cm to 43”/109 cm

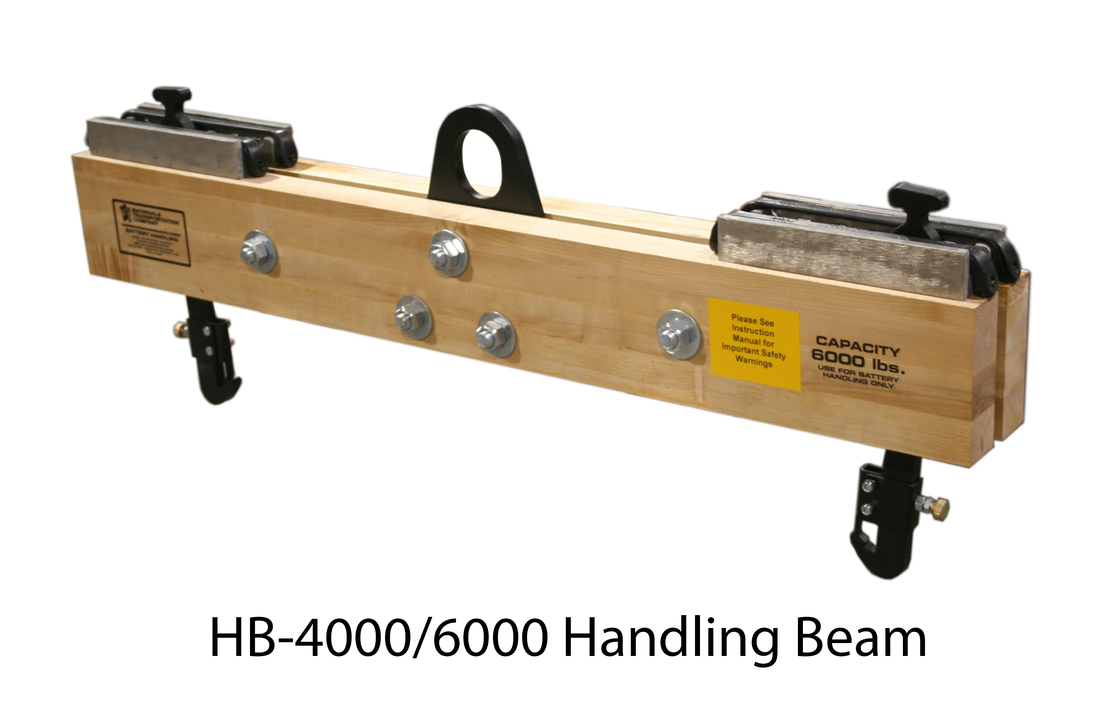

HB-4000 Handling Beam

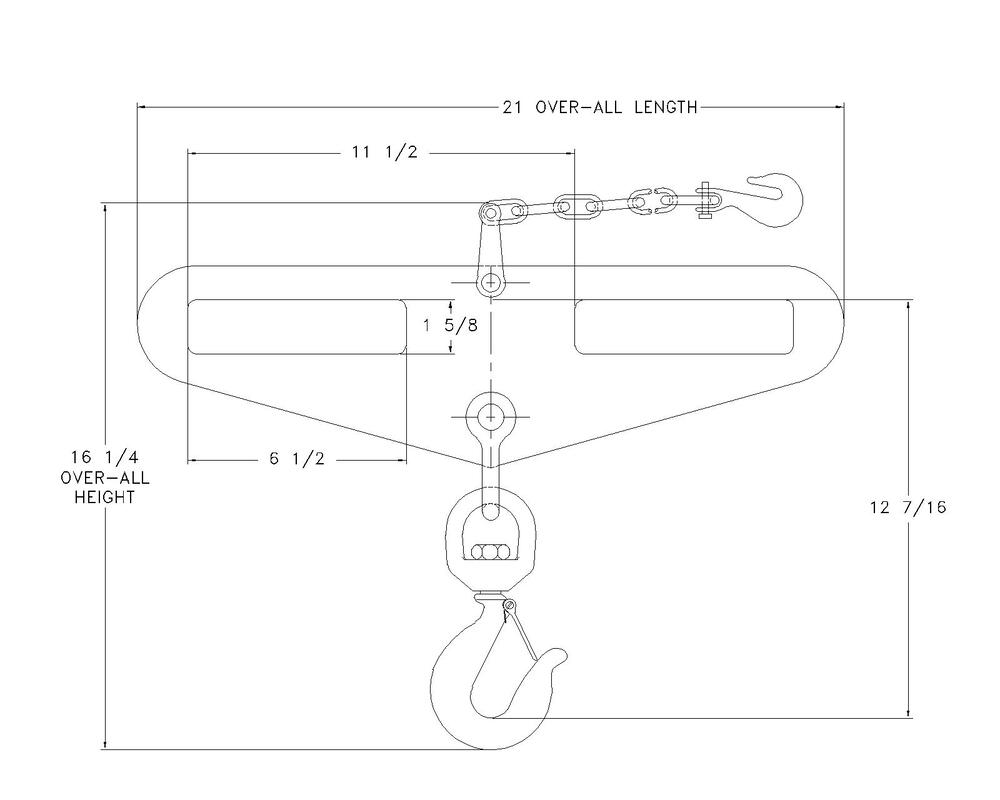

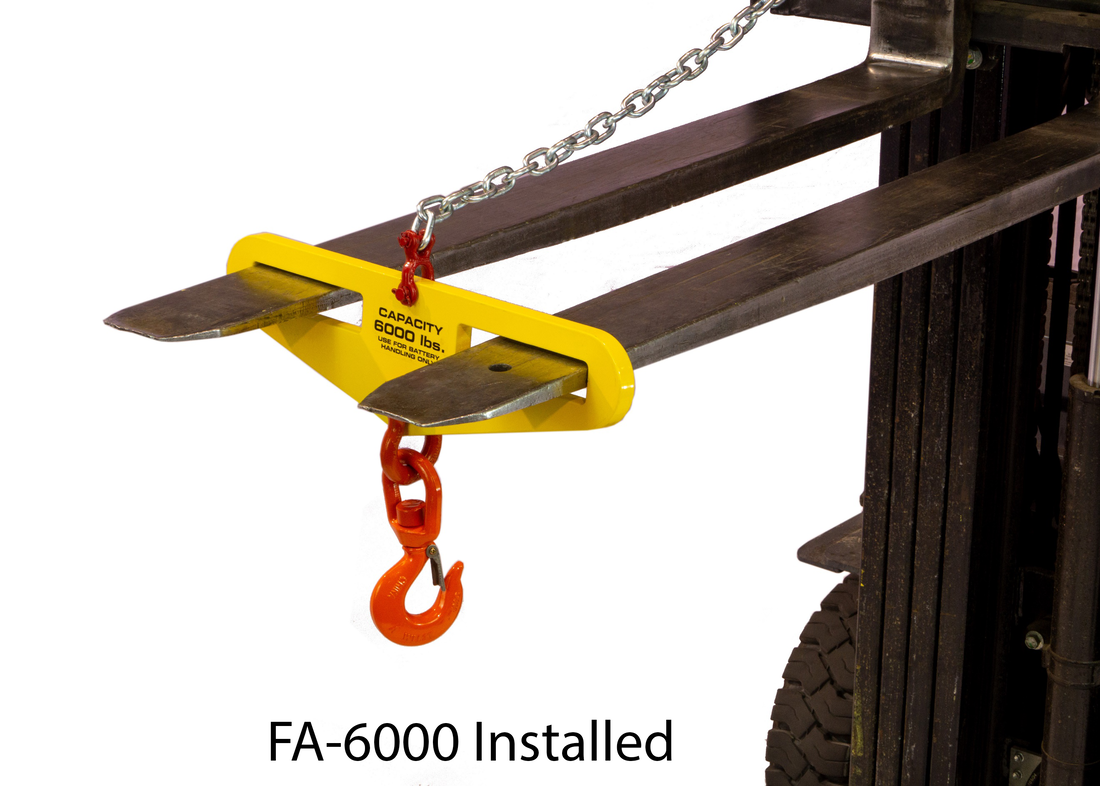

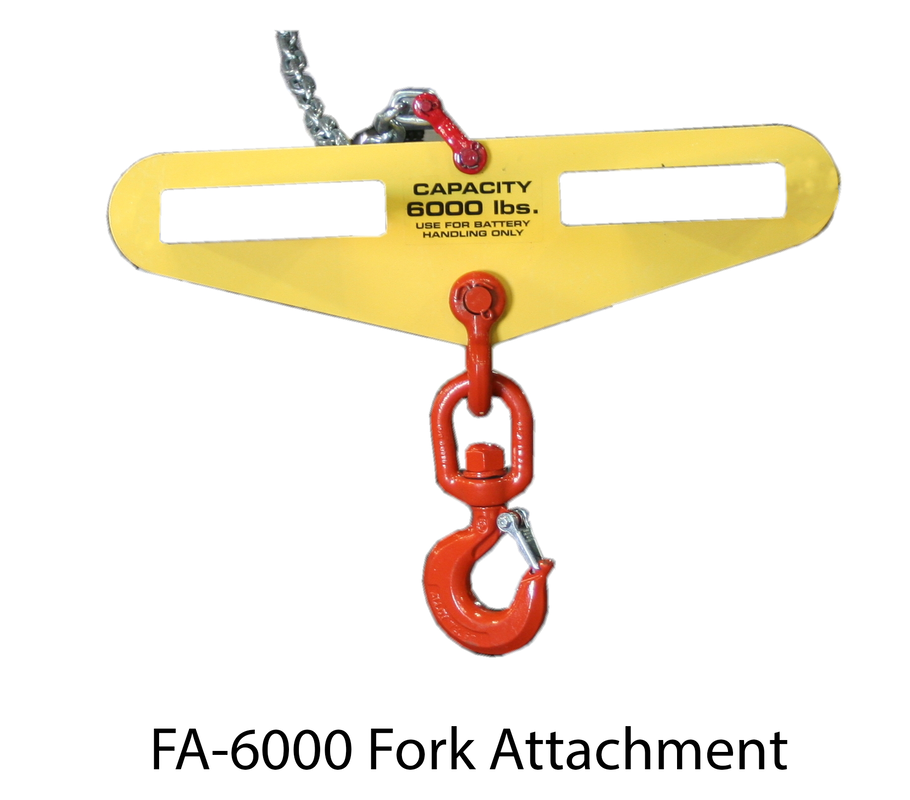

Model FA-6000 Fork Attachment

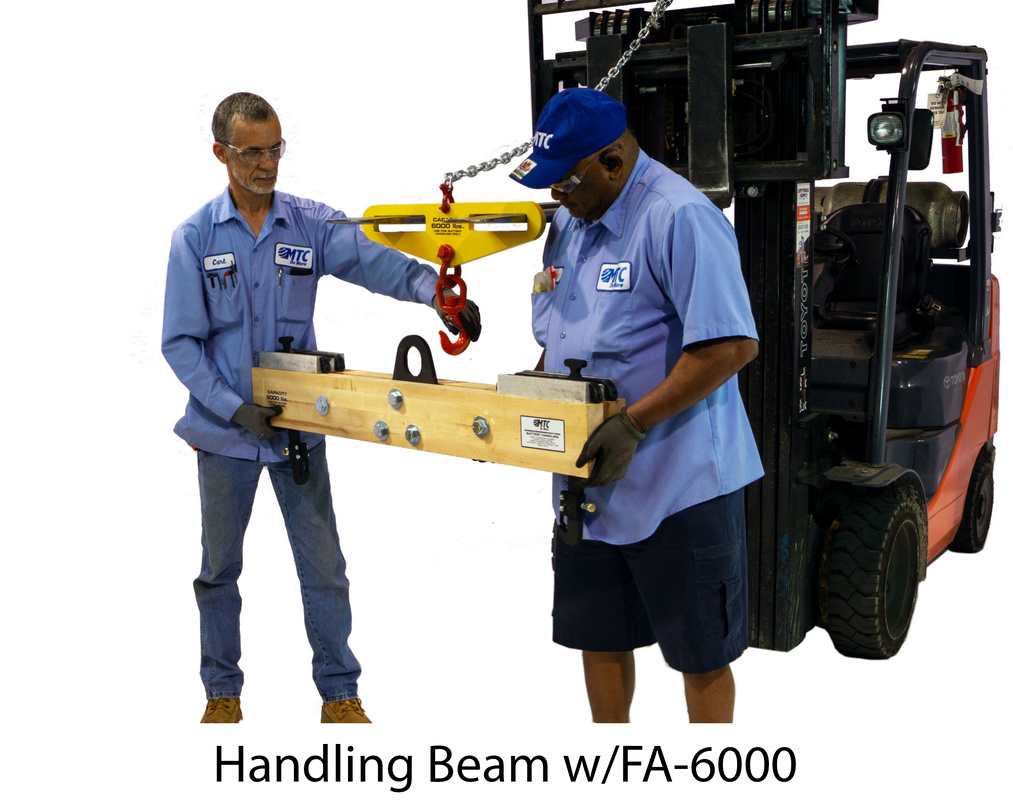

The FA-6000 is used with the Handling Beam for overhead battery removal.

Constructed from ¾” steel plate, powder coated
48” safety chain and hook
Swivel hook with safety latch
6000 lb. capacity
Fork Opening of 1 5/8” (5 cm) X 6 ½” (17 cm)

Related Products

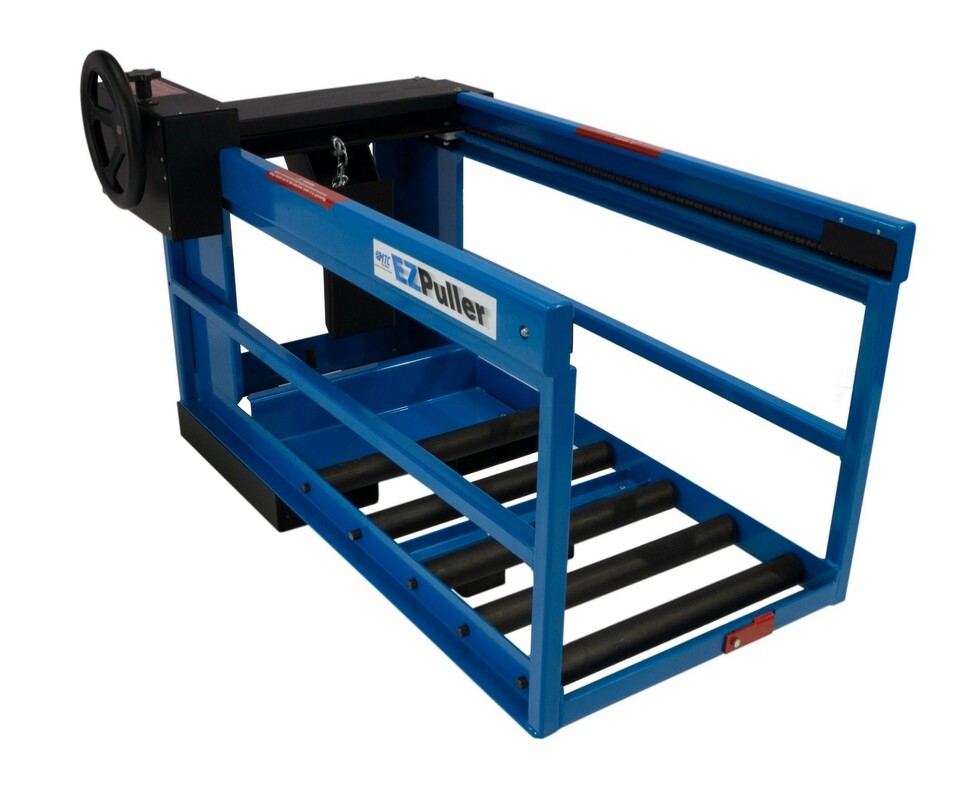

EZ Pullers
