Single Level Power Changers

MTC PCHE-SS Series

FeaturesBenefits

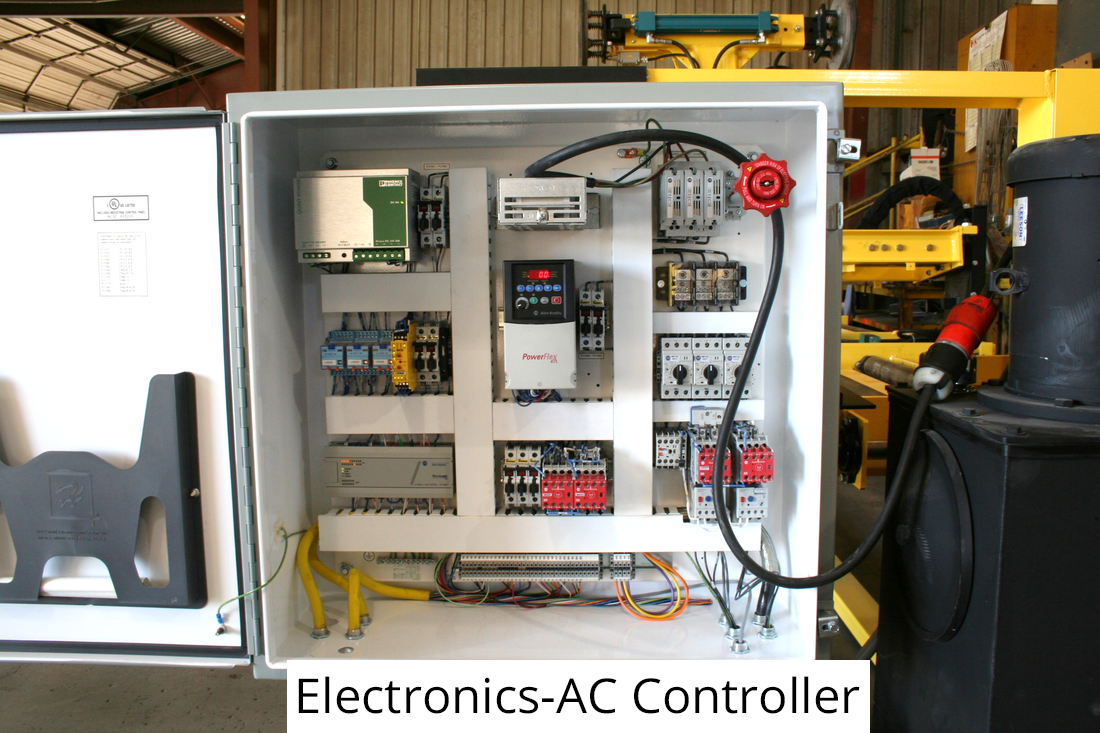

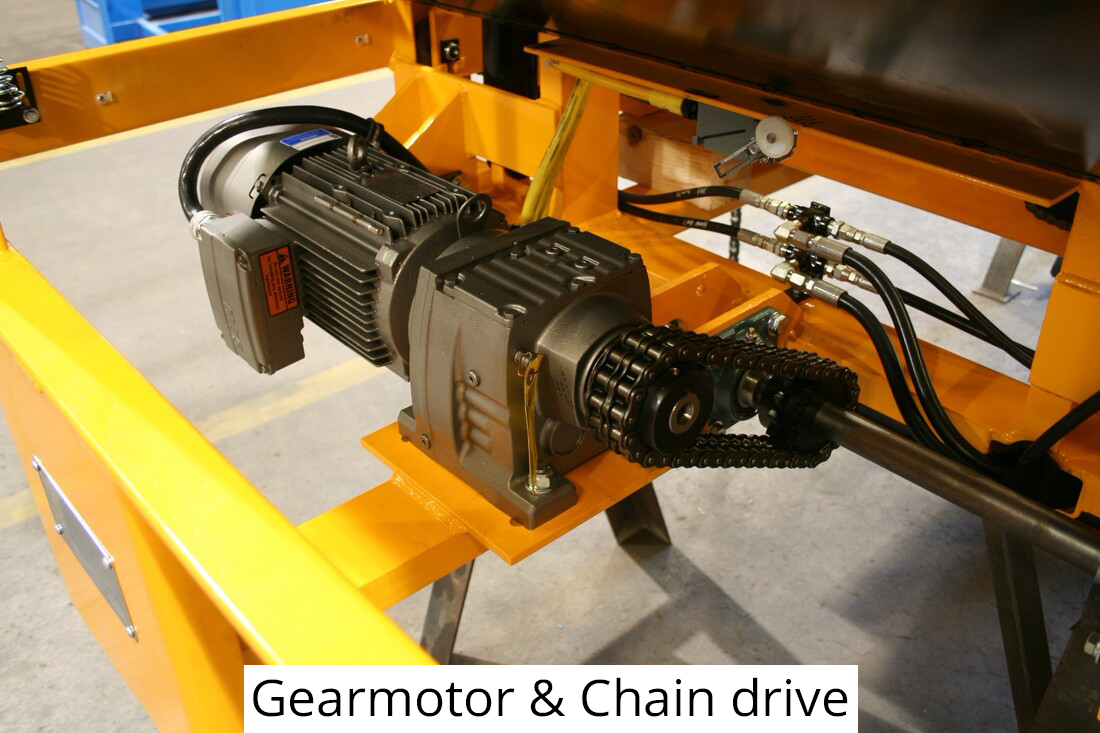

AC-controlled gear-reduction drive systemControls motor speed, lift, torque settings & braking.
Hydraulic carriage LiftRetrieve batteries from fork trucks of different heights

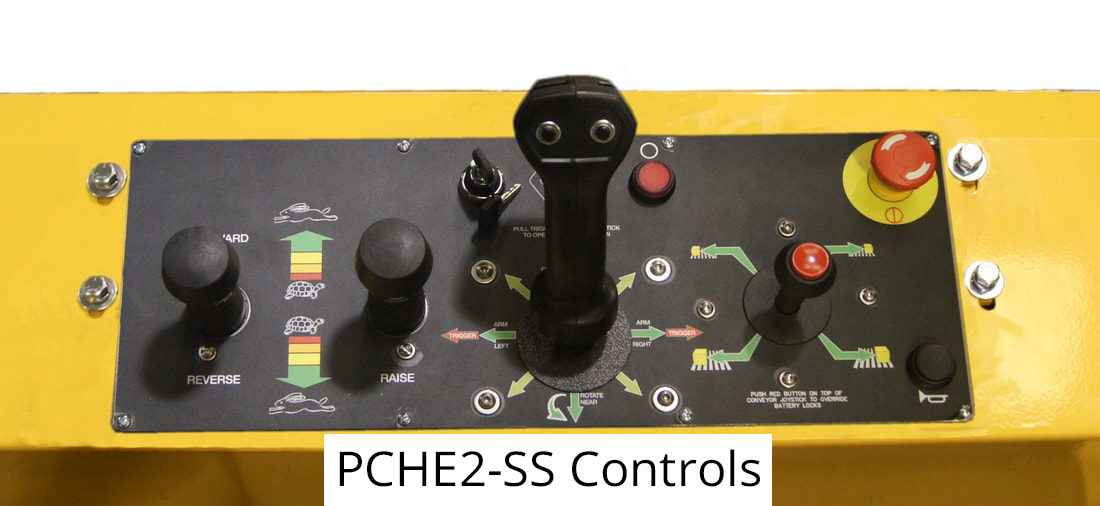

Eight-way multi-function joystick Controls the arm movement and allows the operator to rotate and slide the pivot arm in one smooth motion.

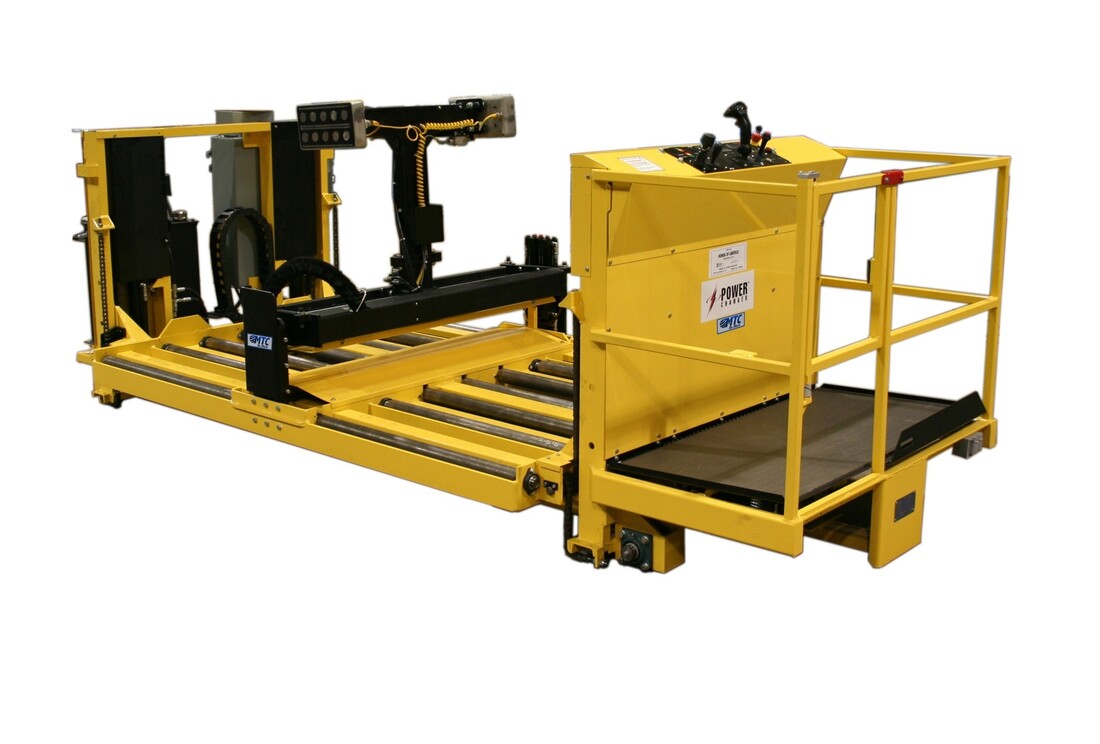

Operator’s Platform Safety SwitchAllows for activation of the controls only when the operator is standing on the platform

Options include:

  • Magnet Extraction (-M)

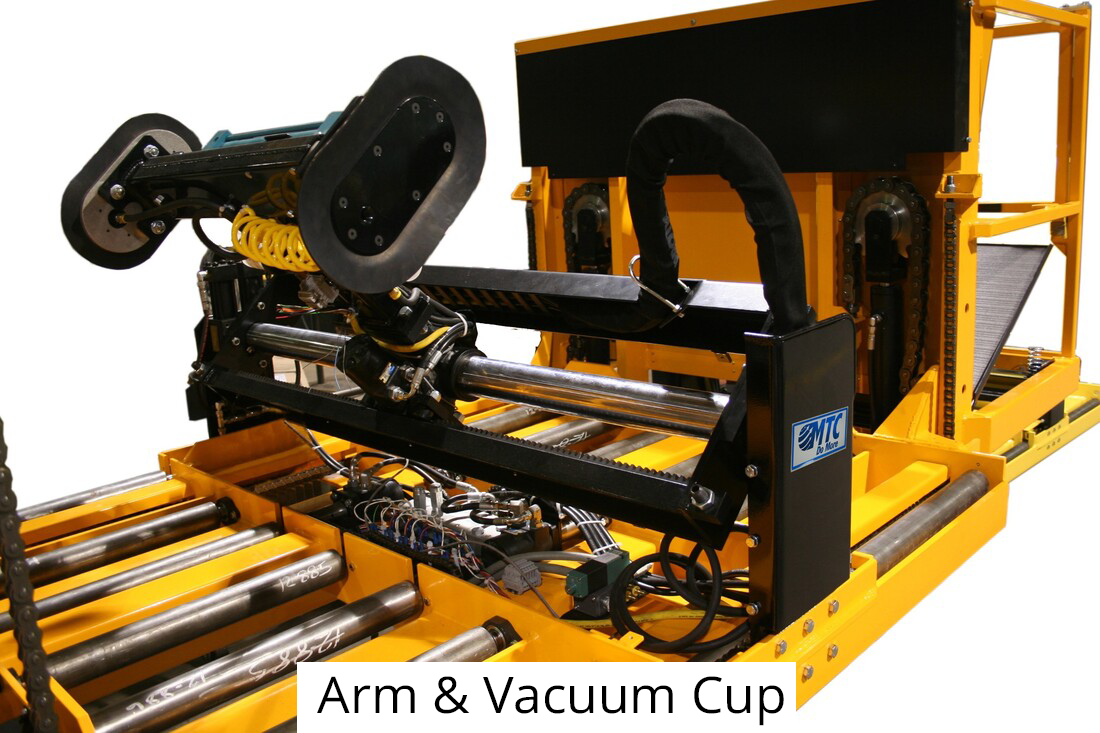

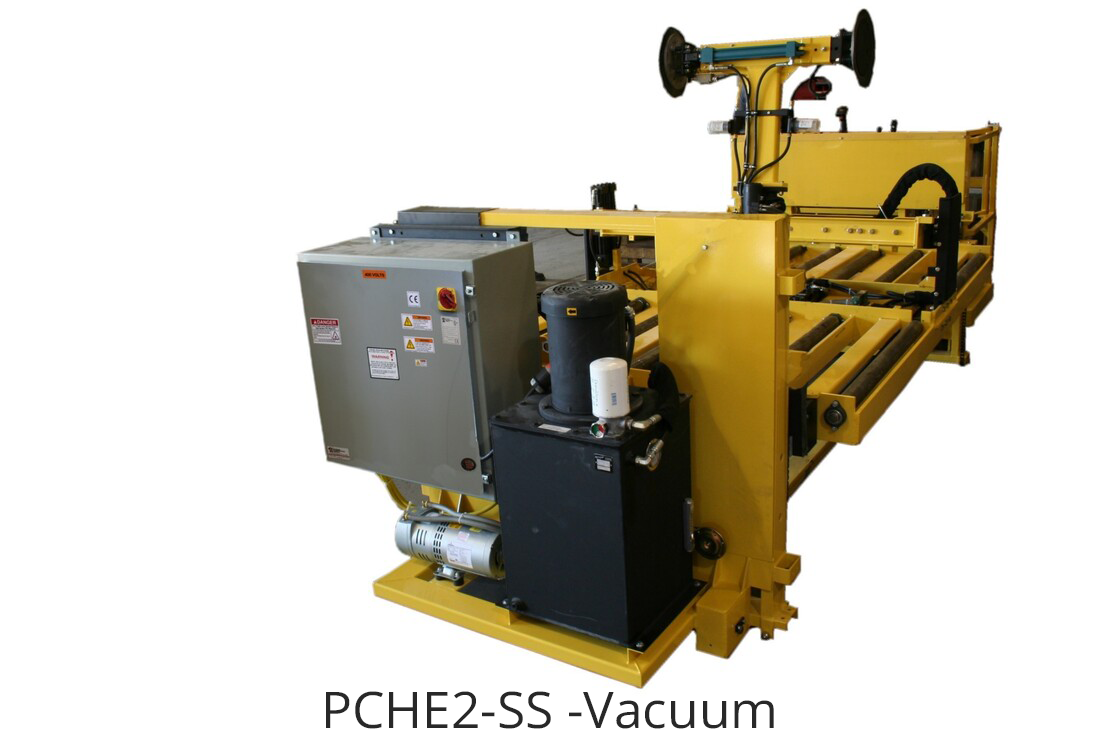

  • Vacuum Extraction (-V)
  • Extension Arm (-A)
  • Extension Roller (-ER)

Interactive 3D View

view in 3d

Specifications

ModelPCHE-1-40-SSPCHE-2-24-SSPCHE-2-40-SS
Overall Length128”/3251 mm135.625”/3445 mm169.625”/4308 mm
Overall Width67.25”/1708 mm67.25”/1708 mm67.25”/1708 mm
Overall Height52.875”/1343 mm52.875”/1343 mm52.875”/1343 mm
Max Battery Length44”/1118 mm44”/1118 mm44”/1118 mm
Max Battery Width40”/1016 mm23”/584 mm40”/1016 mm
Max Battery Height36”/914 mm36”/914 mm36”/914 mm
Max Load Capacity10,000 Lbs./4536 kgs.10,000 Lbs./4536 kgs.10,000 Lbs./4536 kgs.
​Shipping/Service Weight4100 Lbs./1860 kgs.4300 Lbs./1950 kgs.​4700 Lbs./2132 kgs.
