Battery Charger Column

MTC CSHFMD-BM Series

FeaturesBenefits
Made of powder-coated, heavy-duty tube and plate steel.Assures long life and ease of sanitation.
½” seismic foot and 4x4x11 GA steel columnAccommodates multiple opportunity chargers.
Optional Unistrut kitConnects units in a row or matrix.
Optional Power Distribution Panel (DP)Install multiple chargers while using only one electrical drop.
Optional BCR-H5 hanging cable balancerKeeps charger leads out of the way.

CSHFMD-BM Charger Column Optionsinclude: ​​

  • Unistrut Kit
  • Power Distribution Panel (DP)
  • BCR-H5 Cable Balancer

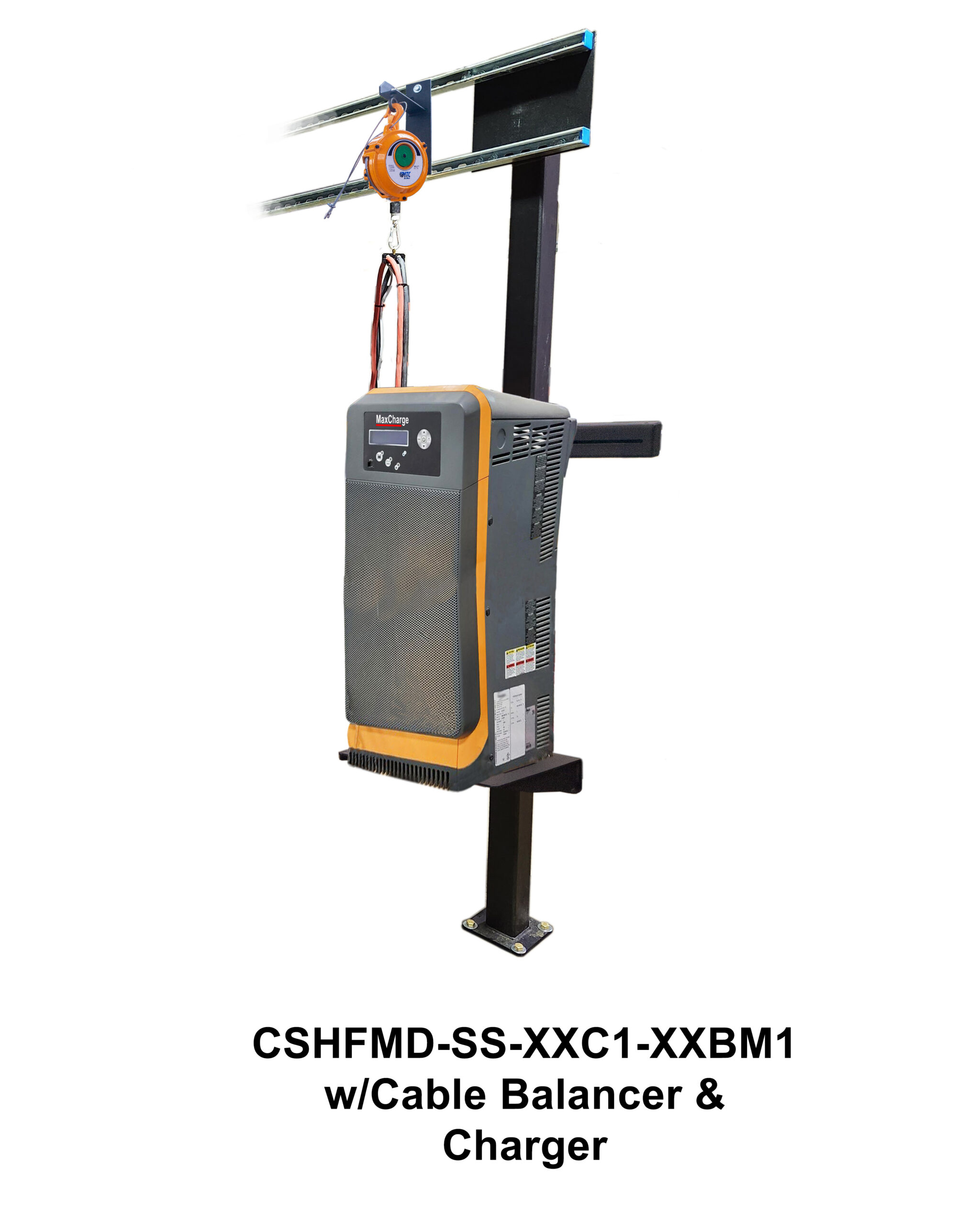

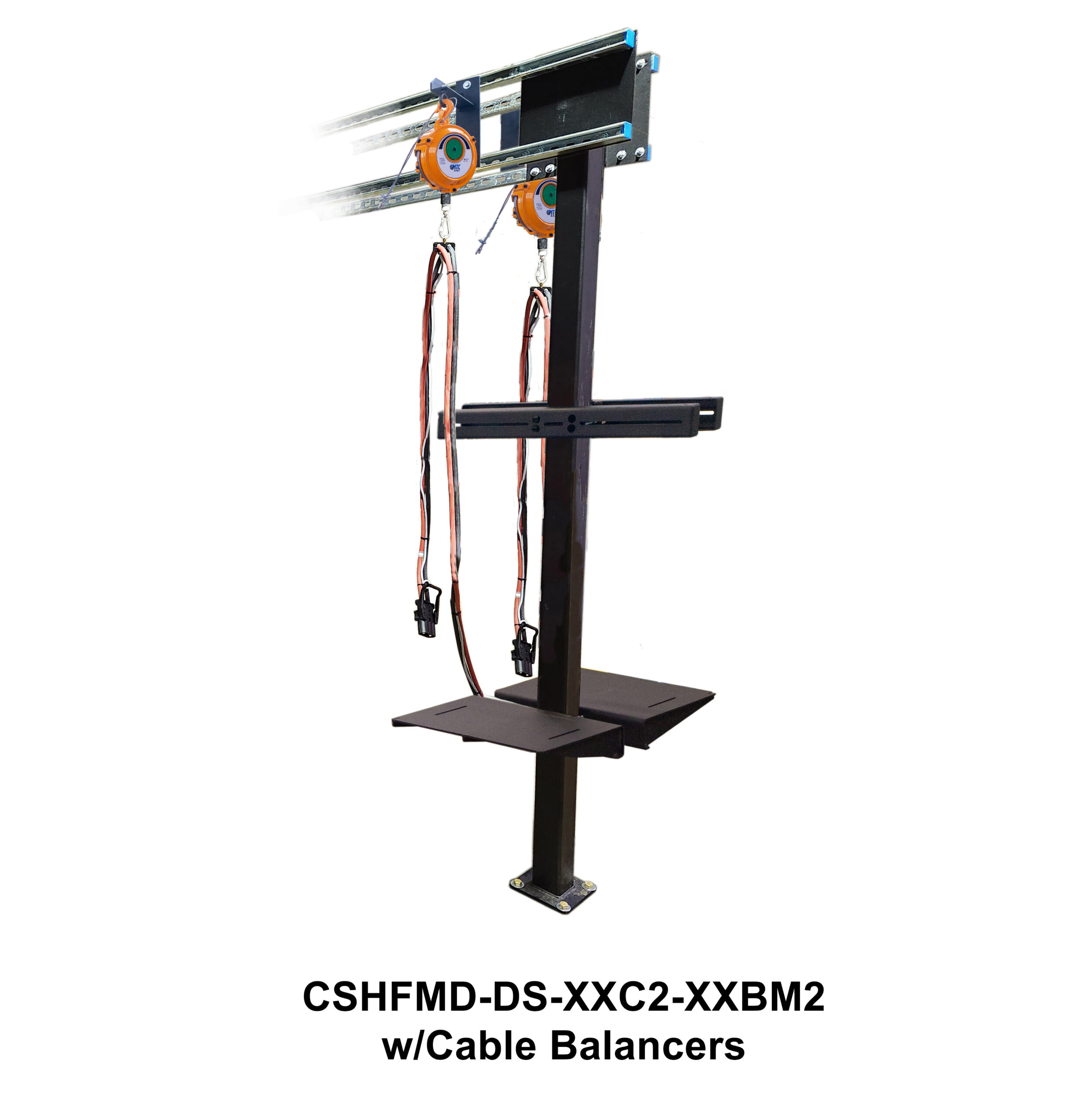

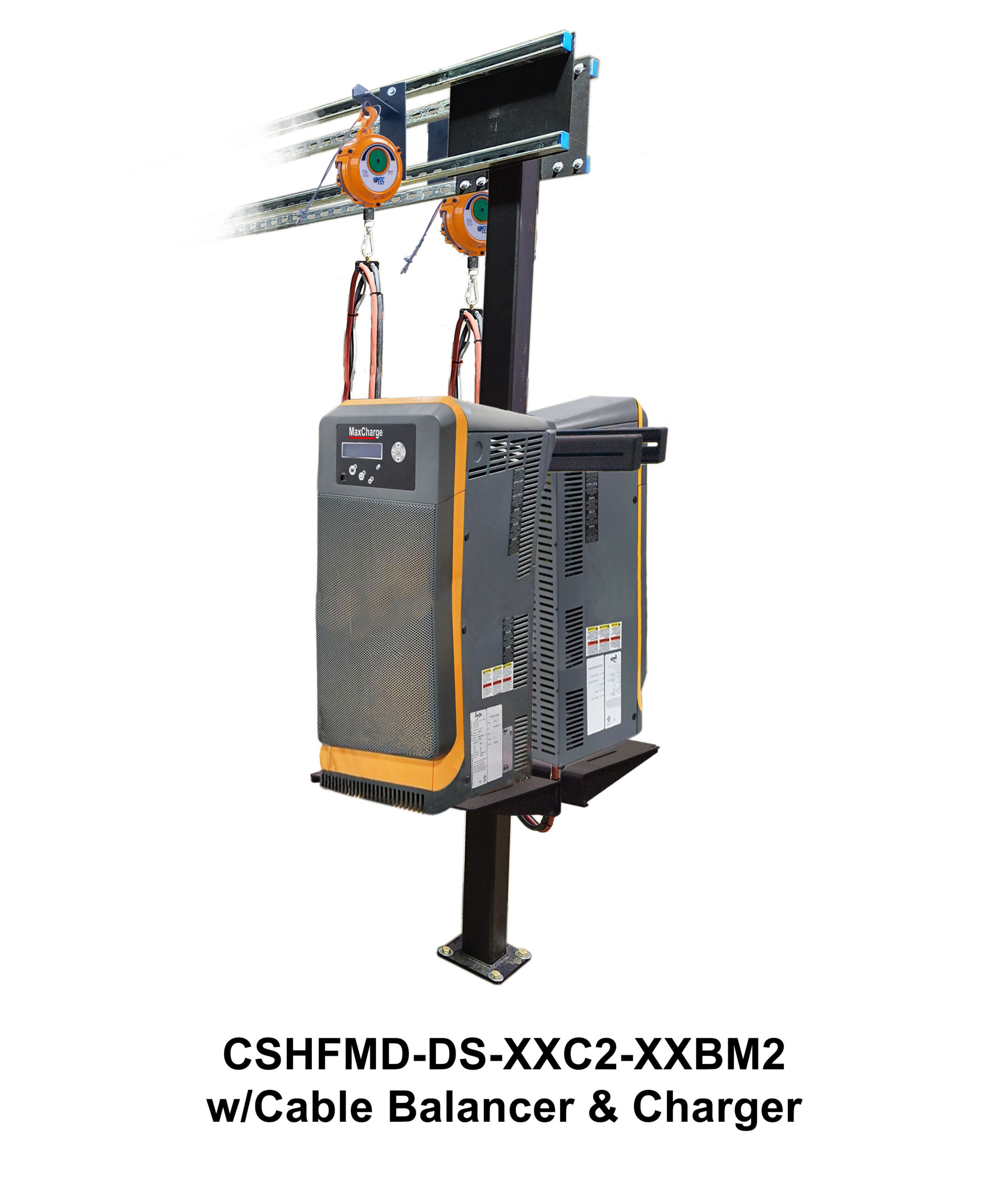

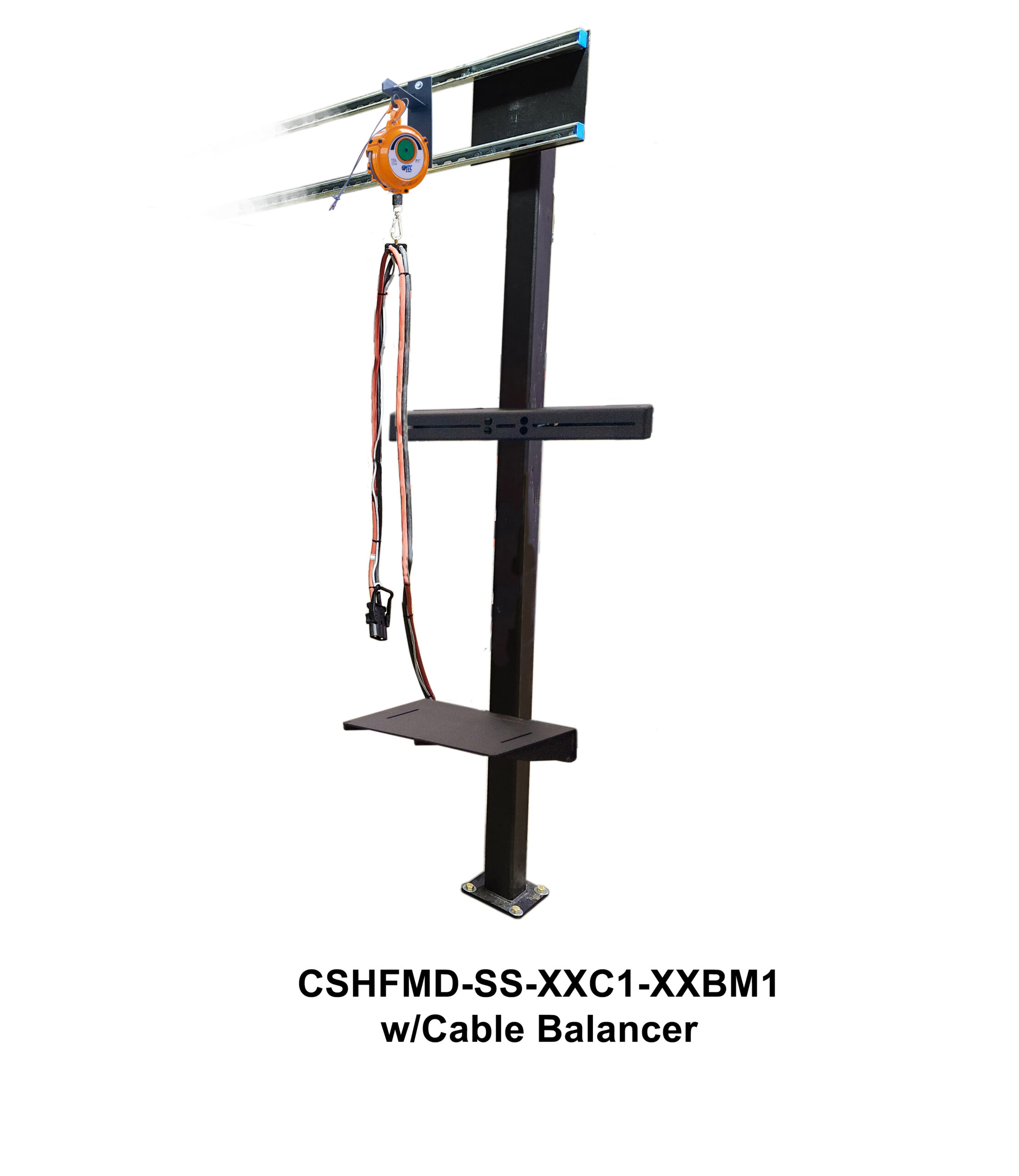

The CSHFMD-SS-XXC1-XXBM1 and CSHFMD-DS-XXC2-XXBM2 are designed to accommodate multiple fast charger models. These units mount to the floor and provide convenient access for opportunity charging. CSHFMD-SS-XXC1-XXBM1 and CSHFMD-DS-XXC2-XXBM2 utilize Shelves and Adjustable Crossmembers to accommodate most bottom-mount, high-frequency chargers on the market today.

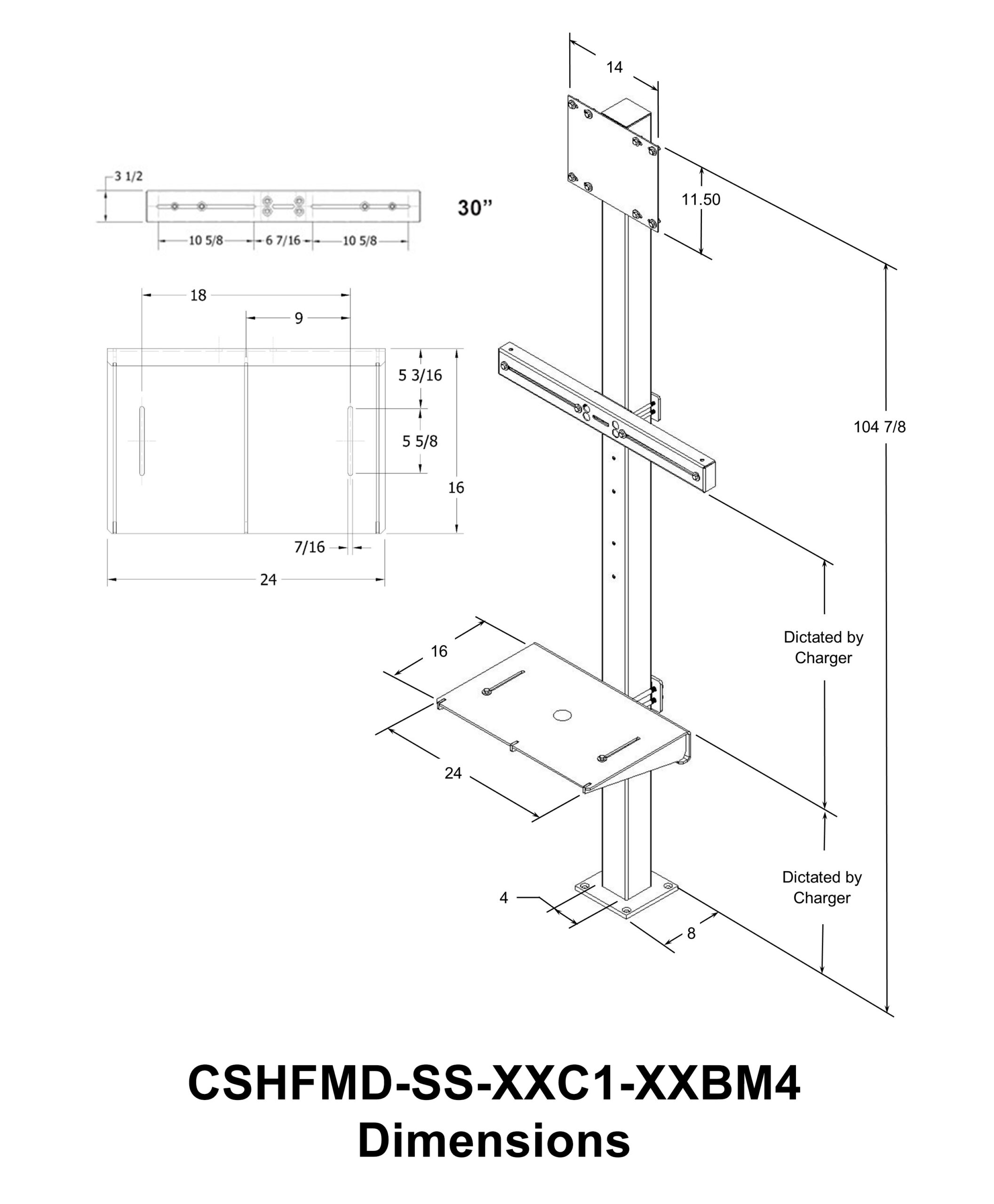

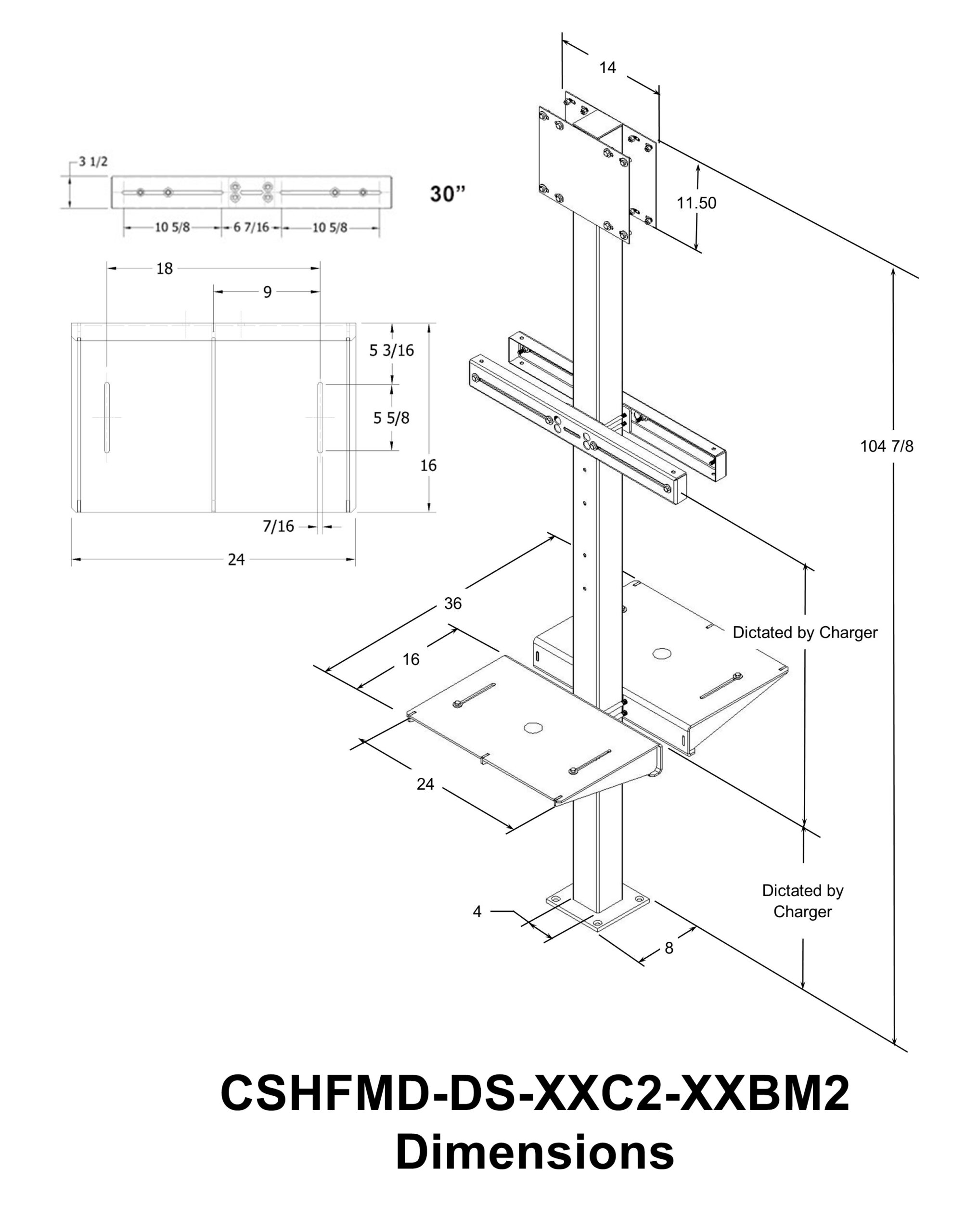

Specifications

ModelQuantity of CrossmembersQuan of Shelves
CSHFMD-SS-XXC1-XXBM1 (Single Sided)11
CSHFMD-DS-XXC2-XXBM2 (Double Sided)22
