EZ Pullers

MTC EZP Series

FeaturesBenefits
The EZ Puller accepts batteries up to 24”Provides safe and economical battery handling for smaller fork truck fleets.

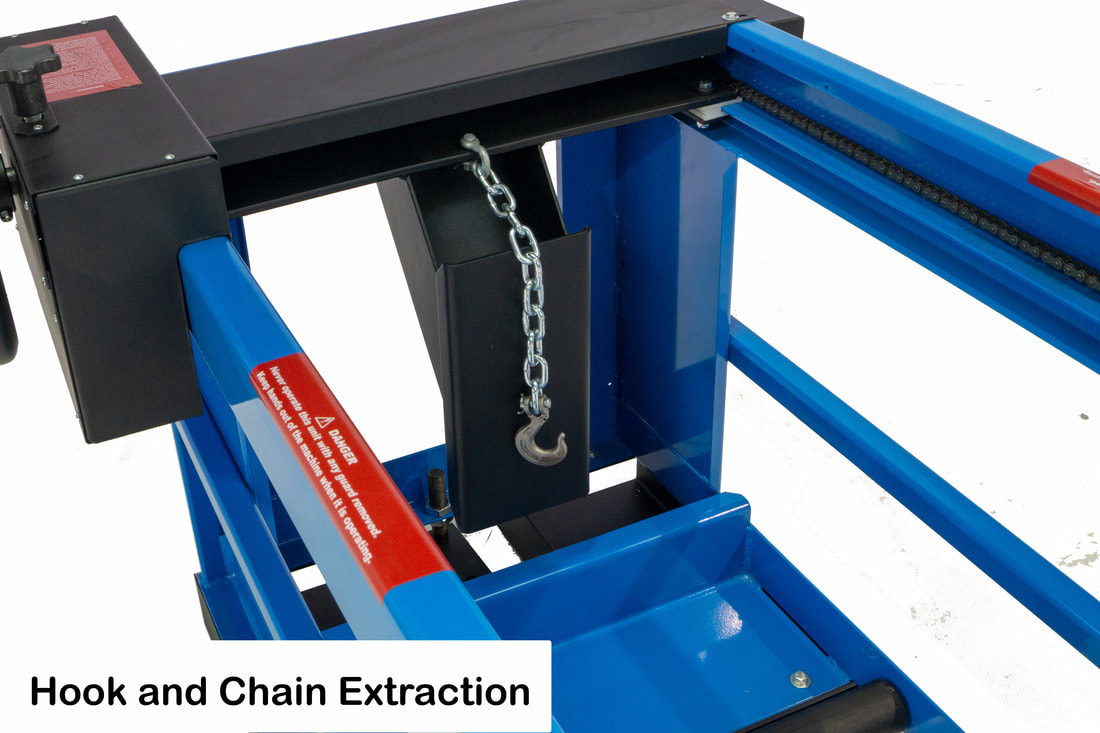

Extraction method is hook and chain. Utilizes sprockets, chains and a hand-wheel to move batteries in and out of the compartment.Does not require electrical power.

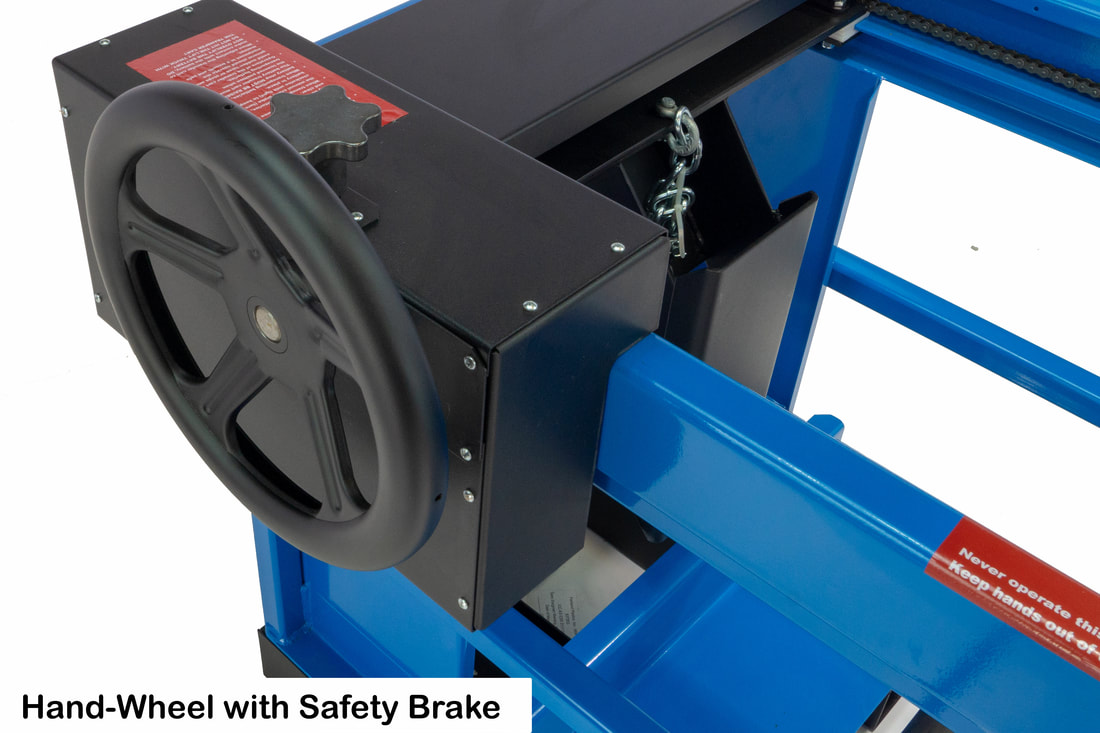

Hand-wheel with brake.Reduces the amount of force required to move the battery on and off the carriage rollers.

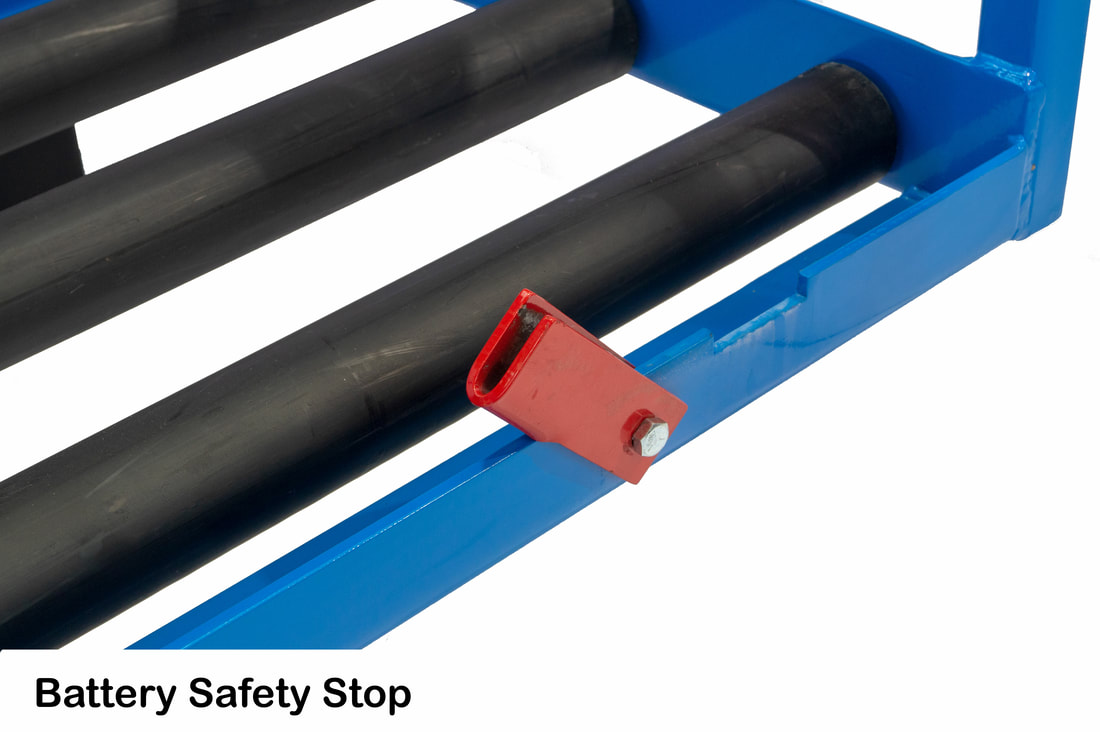

Mechanical battery safety stop.Protects the operator and surrounding personnel from possible injury during battery transport.

Standard colors:

  • Sky blue​

Optional colors: ​​

  • MTC beige
  • Safety yellow
  • Black
  • Custom colors available

Interactive 3D View

View In 3D

Specifications

ModelEZP-24EZP-36
Max Load Capacity3000lb/1365kg3000lb/1365kg
Battery Compartment Width24.1875in/61.4cm36.1875in/91.9cm
Max Recommended Battery Width22in/55.9cm34in/86.4cm
Max Recommended Battery Length44in/111.8cm44in/111.8cm
Overall Width40.625in/103.2cm53.25in/135.3cm
Overall Height40.3125in/102.4cm40.3125in/102.4cm
Overall Length58.75in/149.2cm58.75in/149.2cm
Max Fork Width8.75in/22.2cm8.75in/22.2cm
Max Outside to Outside distance of Forks28in/71.1cm28in/71.1cm
​Minimum Distance Between Forks13in/33cm13in/33cm
